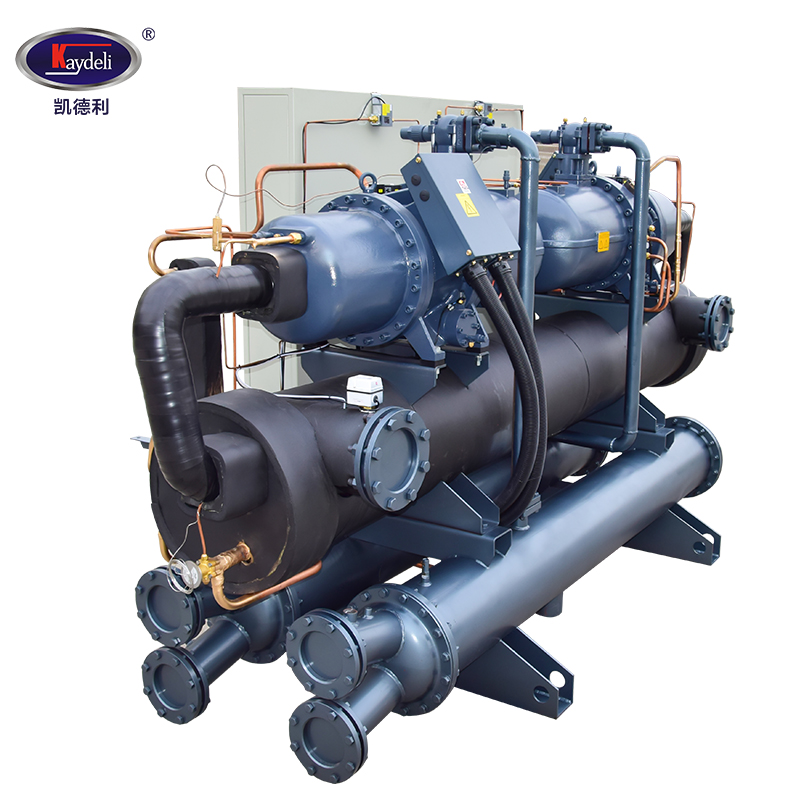

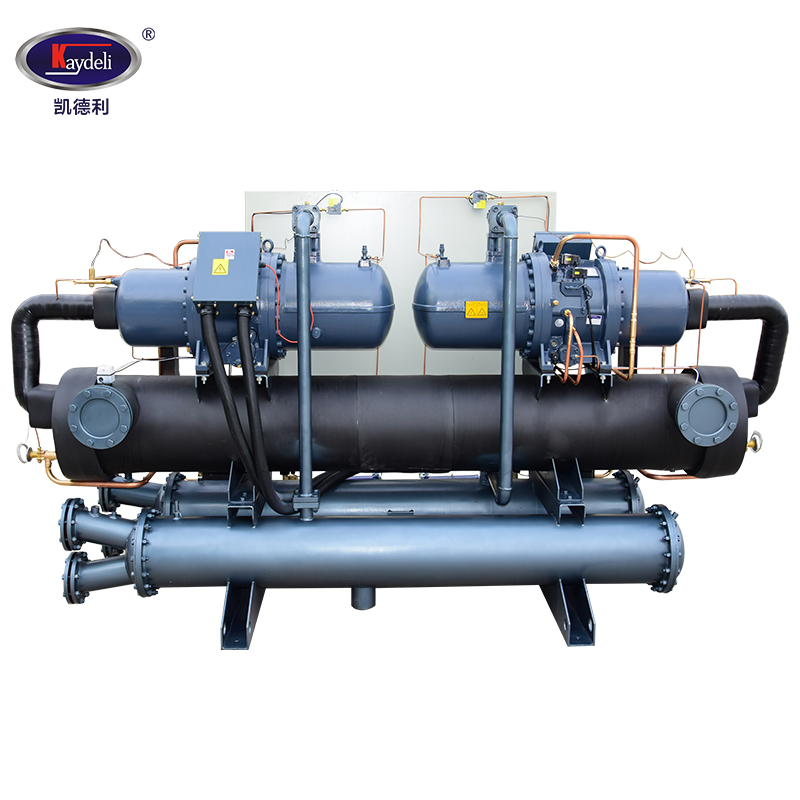

Kaydeli's water-cooled chiller unit is more precise when it comes to water flow and temperature control. Simple operation control, easy to install, and could be remotely controlled from a certain distance.
Product Description
Model | KDS-160DLA | ||
Cooling capacity | kW | 520 | |
kcal/h | 447200 | ||
Power consumption | kW | 102.5 | |
Power | 3PH-380V-50HZ | ||
Compressor | Type | Semi-Hermetic screw type | |
Quantity | Set | 2 | |
Start-up mode | Y - △ | ||
Capacity control type(%) | 0~100 | ||
Power(kW) | 51.2*2 | ||
Refrigeration oil | Type | SUNISO 4GS | |
Charge | L | 12 * 2 | |
Refrigerant | Type | R22 (Optional) | |
Control mode | Temperature-sensitive expansion valve | ||
Filling amount(kg) | 40 * 2 | ||
Evaporator | Type | Shell and Tube | |
Chilled fluid flow | m3/h | 268 | |
Pipe | B | PT 5" | |
Condenser | Type | Shell and Tube | |
Cooling fluid flow | m3/h | 90 | |
Pipe | B | PT 4" *2 | |
Protective devices | Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing protection. | ||
Dimension | L | mm | 3200 |
W | mm | 1050 | |
H | mm | 1850 | |
Weight | kg | 3050 | |
Remarks:
1. The temperature of the cooling water inlet and outlet: 45℃ / 5℃; Cooling water inlet and outlet: 30℃ / 35 ℃
2. The temperature controllable range: 5 ℃ to 35℃ (In your project +9°С/+5°С)
2. The above specifications are subject to change without notice, if there are special requirements, please ask before ordering.
