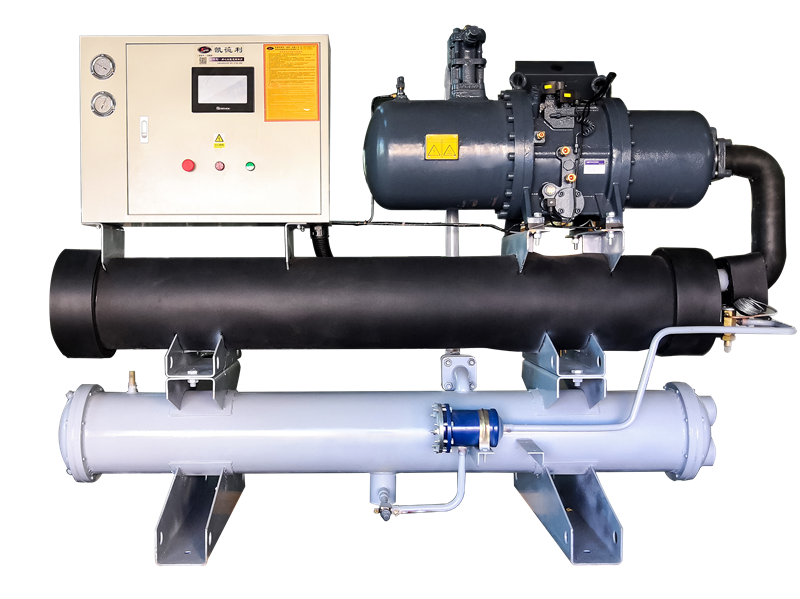

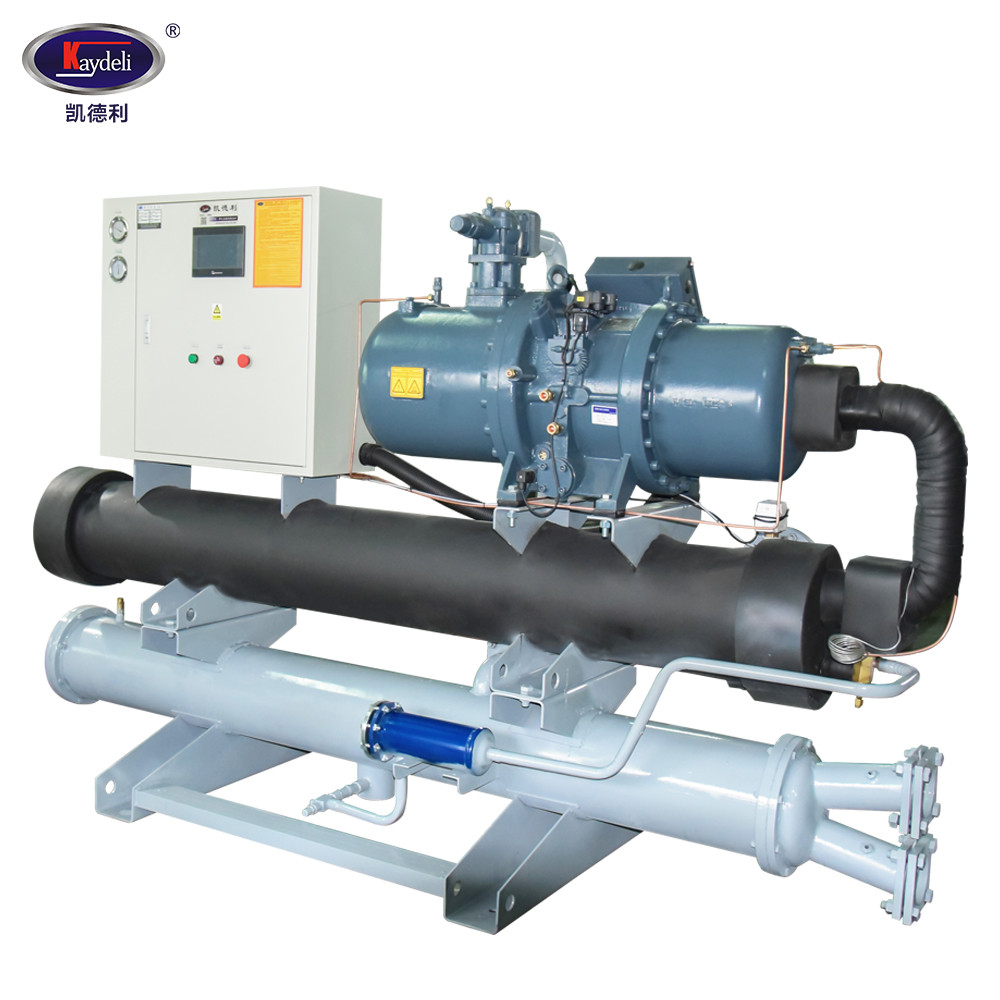

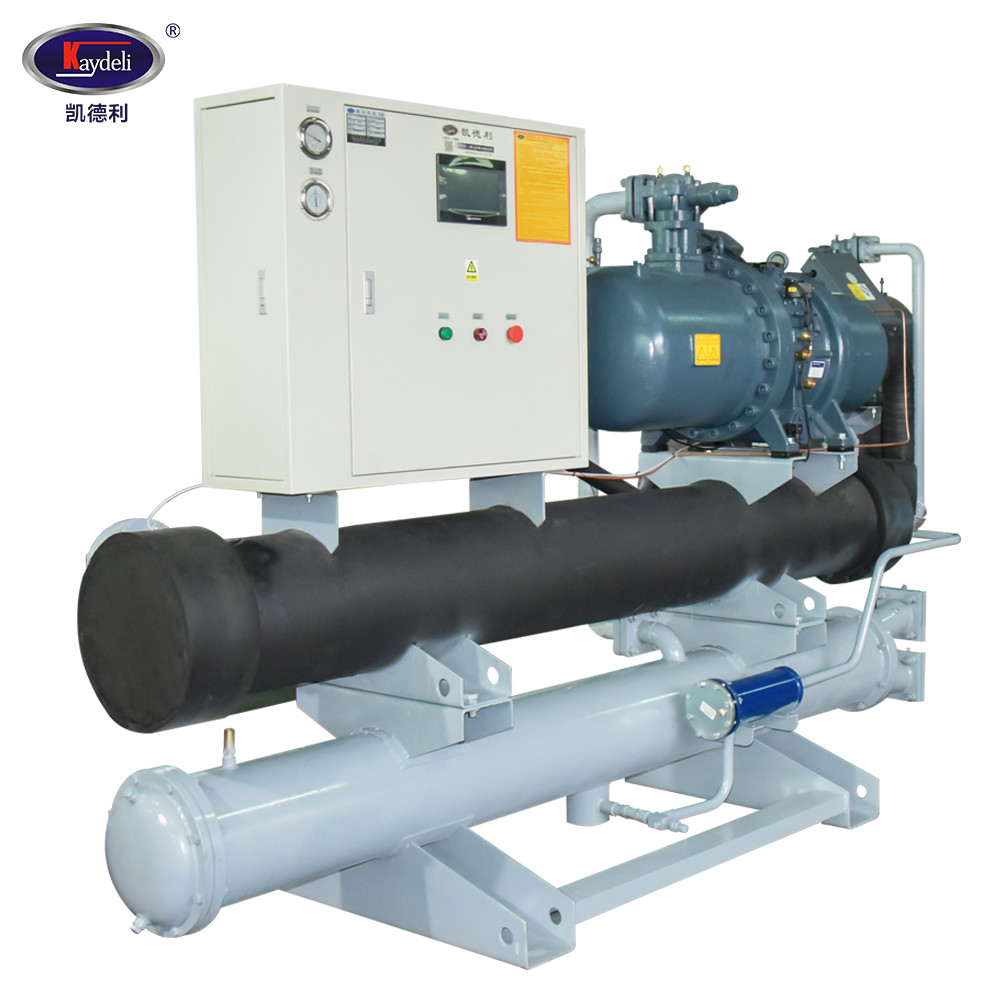

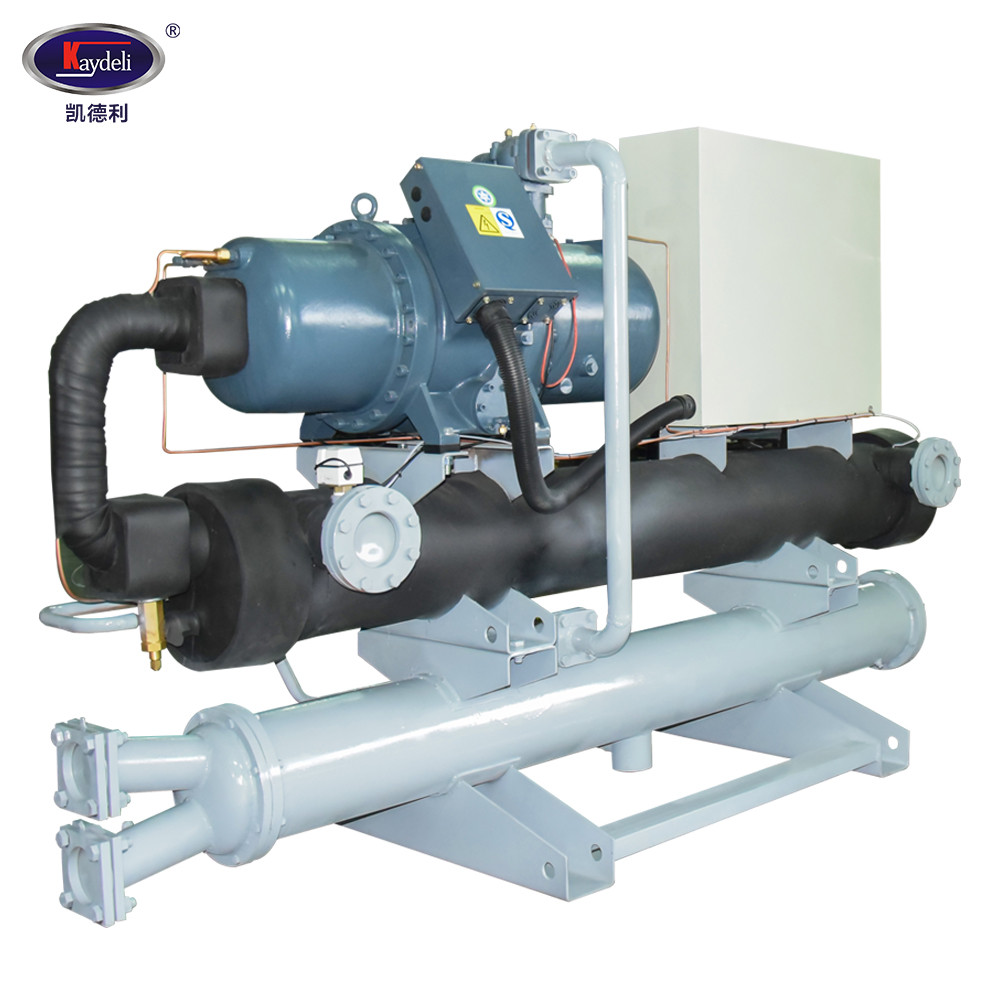

Water-cooled screw chillers are widely used in factory equipment cooling and chemical, food, steel, electronics, reactors, fermentation tanks, freezing and refrigeration, and other industries of different scales in industrial refrigeration projects. KDS screw chillers have been our company for many years. The experience of designing and producing water chillers, combined with the latest technological development, has concentrated on research, design and development of chillers. The product keeps up with the development trend of the times, adhering to the design concept of "high efficiency, reliability, energy saving, and environmental protection" to provide users with an excellent refrigeration equipment. Can provide aqueous solution and 7~30℃ cold water, or 5~10℃ temperature difference (import and export) large temperature difference frozen water.
Features:
Well Known Brand Compressor
¨ Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency.
¨ Adjustable infinite or closely stepped capacity control, features energy efficient, stable and quiet running.
¨ Most advanced patented highest precision manufacturing process.
¨ Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, oil temperature sensor.
¨ Wide range of refrigerant for option, including R134a, R407c and R22(R404a, R507c upon request).
Micro-programming Control System
¨ Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.
¨ Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, start up latency.
¨ Optional operation language, menu leading, unit running state easy to adjust.
Easy Installation, Reliable Running
¨ Closely stepped start-up, minimize impact to electricity.
¨ Steady and safe running, low vibration, easy for installation.
¨ Compact structure, less space demand and light in weight, easy for transport and installation.
¨ Completely wired, inspected and tested pre-delivery, saving installation time and cost.
Water Cooled Water Chiller operation diagram
Specifications(cooling capacity from 108KW to 866KW for scroll type chiller, screw chiller could contact us):
Water-cooled Screw Chillers Units Specifications | |||||||||
Model | KDS-030S | KDS-040S | KDS-050S | KDS-060S | KDS-080S | KDS-090S | KDS-100S | ||
Power supply voltage | 3Φ-50Hz-380V | ||||||||
cooling capacity | kw | 108 | 148 | 173 | 198 | 260 | 293 | 335 | |
kcal/h | 92,880 | 127,280 | 148,780 | 170,280 | 223,600 | 251,980 | 288,100 | ||
Input power | kw | 22.0 | 30 | 36.0 | 41 | 55.2 | 61.0 | 64.8 | |
Chilled fluid flow | m3/h | 18 | 24 | 29 | 33 | 46 | 50 | 54 | |
Cooling fluid flow | m3/h | 22 | 29 | 35 | 40 | 55 | 62 | 68 | |
Power supply voltage | 3PH-380V-50HZ(200V/220V/415V 50HZ/60HZ) | ||||||||
Compressor | Type | Semi-Hermetic screw type | |||||||
Number | 1 | ||||||||
Starting method | Y - △ | ||||||||
Capacity control type(%) | 0,33,66,100 | 0,25,50,75,100 | |||||||
Power(kw) | 22 | 30 | 36 | 41 | 55.2 | 61 | 64.8 | ||
Refrigeration oil | Type | SUNISO 4GS | |||||||
Charge | L | 7 | 7 | 7 | 8 | 12 | 16 | 16 | |
Refrigerant | Type | R-22 | |||||||
Control mode | Thermostatic expansion valve | ||||||||
Charge | kg | 16 | 21 | 27 | 32 | 42 | 48 | 54 | |
Evaporator | Type | Shell and Tube | |||||||
Pipe | B | PT 2-1/2" | PT 3" | PT 4" | |||||
Condenser | Type | Shell and Tube | |||||||
Pipe | B | PT 3" | PT 4" | ||||||
Protective device | Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing protection. | ||||||||
Dimension | L | mm | 2500 | 2500 | 2500 | 2500 | 3100 | 3100 | 3100 |
W | mm | 900 | 900 | 900 | 900 | 900 | 900 | 900 | |
H | mm | 1450 | 1500 | 1600 | 1700 | 1750 | 1860 | 1860 | |
Weight | kg | 1020 | 1150 | 1350 | 1500 | 1680 | 1800 | 1930 | |
Mode | KDS-120S | KDS-150S | KDS-180S | KDS-200S | KDS-220S | KDS-240S | KDS-260S | ||
Power supply voltage | 3Φ-50Hz-380V | ||||||||
cooling capacity | kw | 409 | 480 | 572 | 638 | 715 | 805 | 866 | |
kcal/h | 351,740 | 412,800 | 491,920 | 548,680 | 614,900 | 692,300 | 744,760 | ||
Input power | kw | 79.0 | 100.0 | 110.5 | 121.8 | 137.0 | 154.5 | 166.8 | |
Chilled fluid flow | m3/h | 68 | 80 | 95 | 106 | 122 | 132 | 140 | |
Cooling fluid flow | m3/h | 82 | 98 | 116 | 129 | 148 | 155 | 172 | |
Power supply voltage | 3PH-380V-50HZ(200V/220V/415V 50HZ/60HZ) | ||||||||
Compressor | Type | Semi-Hermetic screw type | |||||||
Number | 1 | ||||||||
Starting method | Y - △ | ||||||||
Capacity control type(%) | 0,25,50,75,100 | ||||||||
Power(kw) | 79 | 100 | 119 | 132 | 148 | 167 | 180 | ||
Refrigeration oil | Type | SUNISO 4GS | |||||||
Charge | L | 16 | 18 | 23 | 23 | 28 | 28 | 28 | |
Refrigerant | Type | R-22 | |||||||
Control mode | Thermostatic expansion valve | ||||||||
Charge | kg | 64 | 73 | 92 | 103 | 116 | 122 | 131 | |
Evaporator | Type | Shell and Tube | |||||||
Pipe | B | PT 5" | PT 6" | PT 8" | |||||
Condenser | Type | Shell and Tube | |||||||
Pipe | B | PT 5" | PT 6" | PT 8" | |||||
Protective device | Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing protection. | ||||||||
Dimension | L | mm | 3200 | 3500 | 3500 | 3650 | 3650 | 3950 | 3950 |
W | mm | 1100 | 1200 | 1200 | 1300 | 1350 | 1400 | 1400 | |
H | mm | 1500 | 1550 | 1600 | 1600 | 1650 | 1650 | 1700 | |
Weight | kg | 2250 | 2500 | 2650 | 2850 | 3000 | 3350 | 3600 | |
Note: 1. Working conditions for the determination of the capacity of the above specifications: chilled water inlet temperature 12°C, outlet temperature 7°C, cooling water inlet temperature 30°C, outlet temperature 35°C, fouling coefficient 0.0001m2°C/D 2. The above specifications are subject to change without notice. If there are special requirements, please ask for specifications before ordering. |

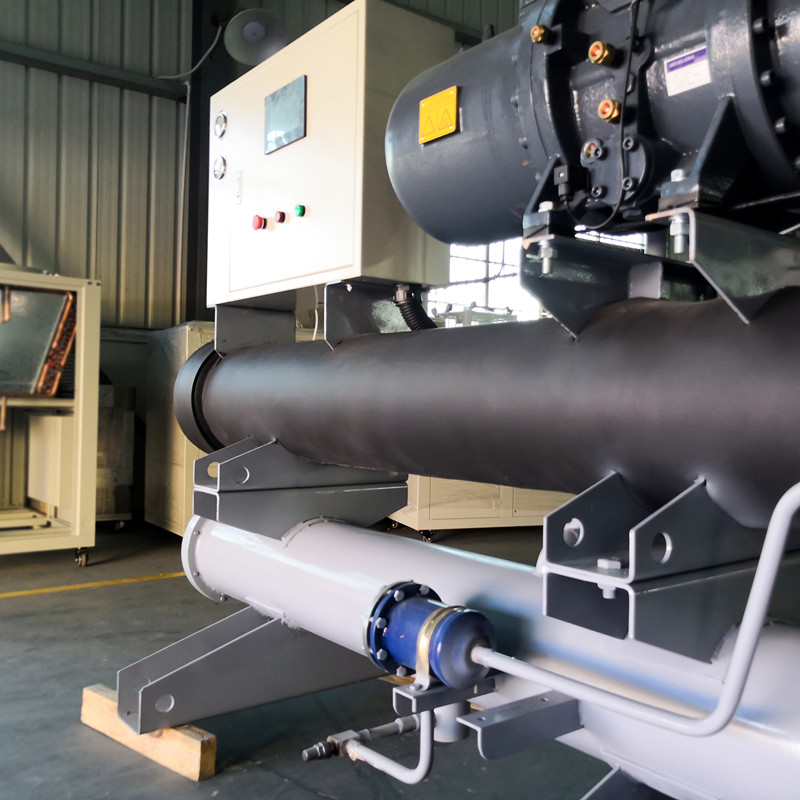

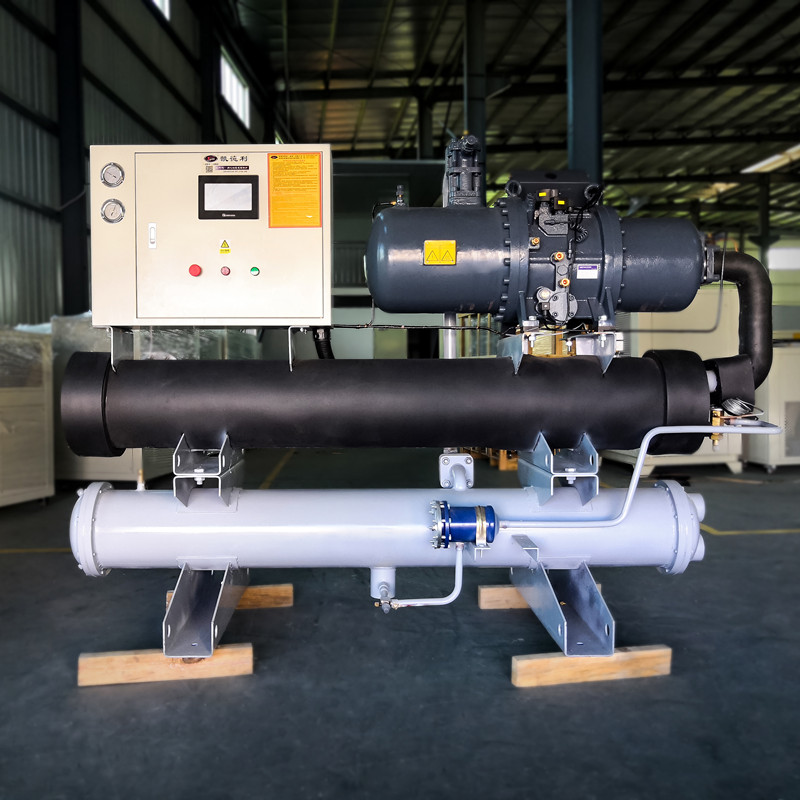

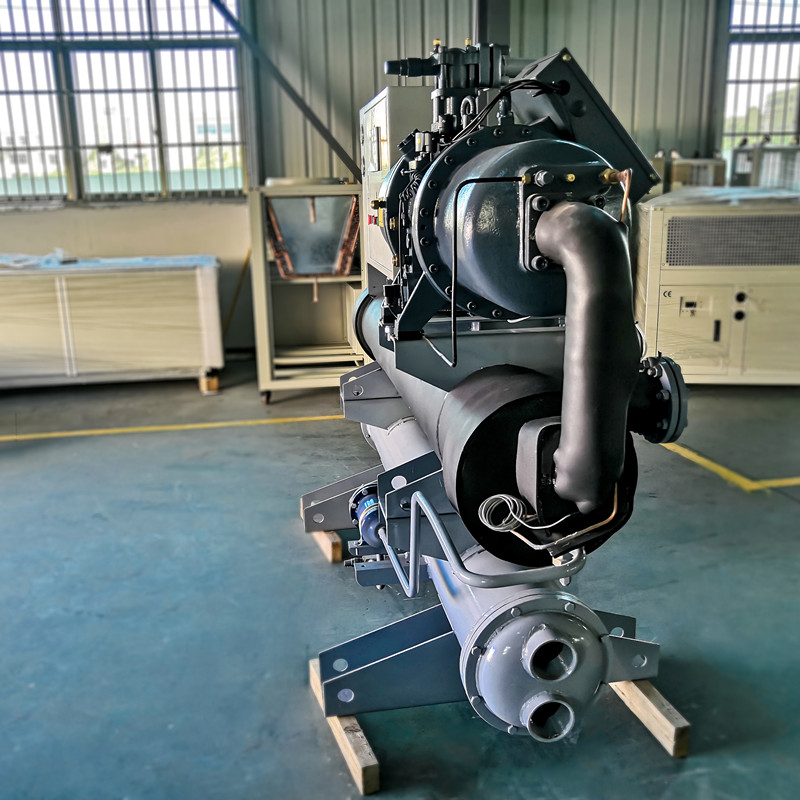

Actual KDS-080SLA photoes shot in our factory:
