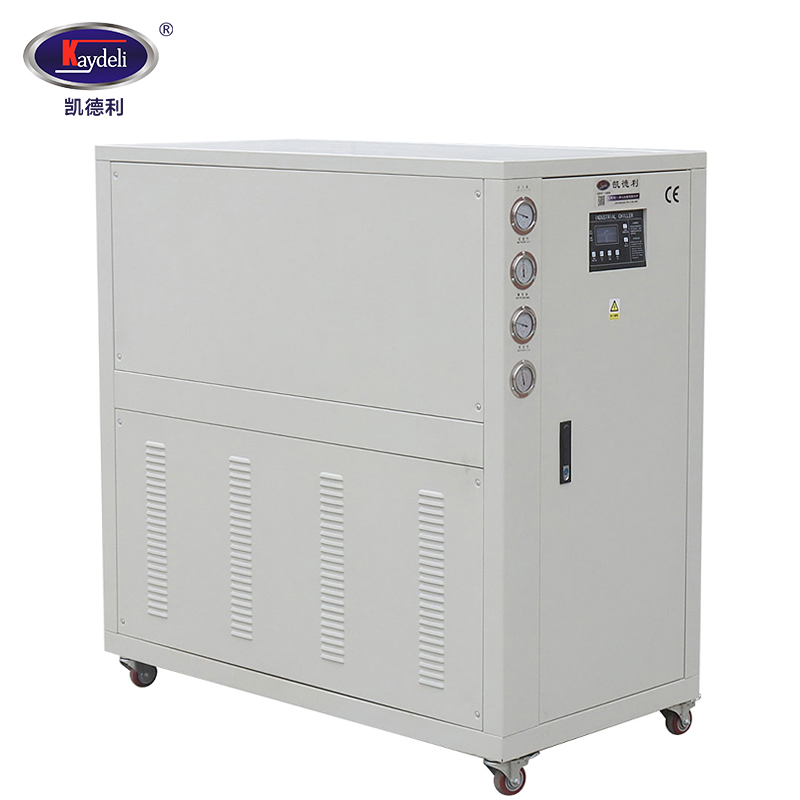

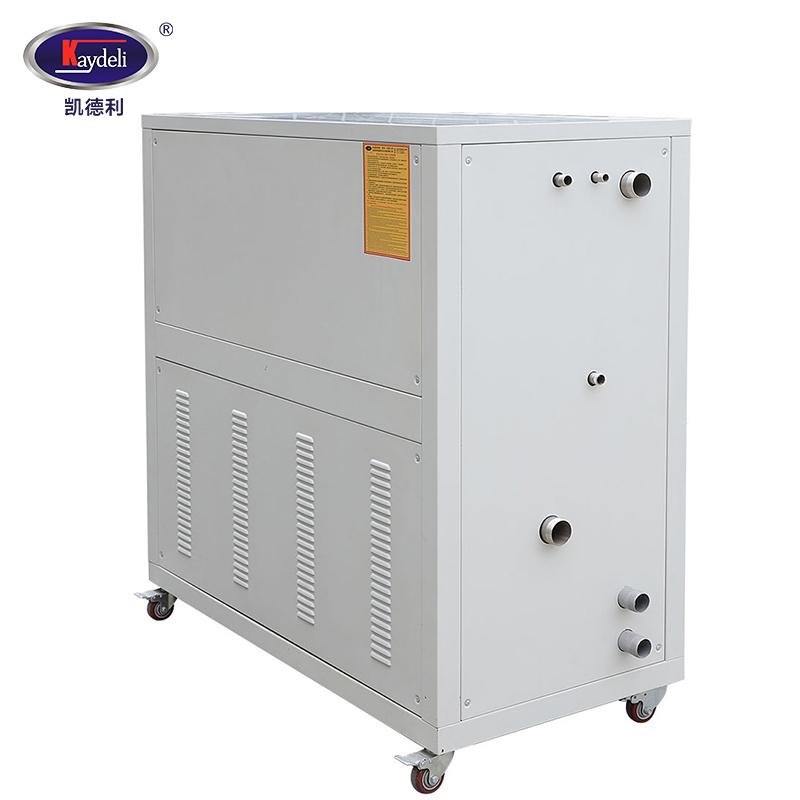

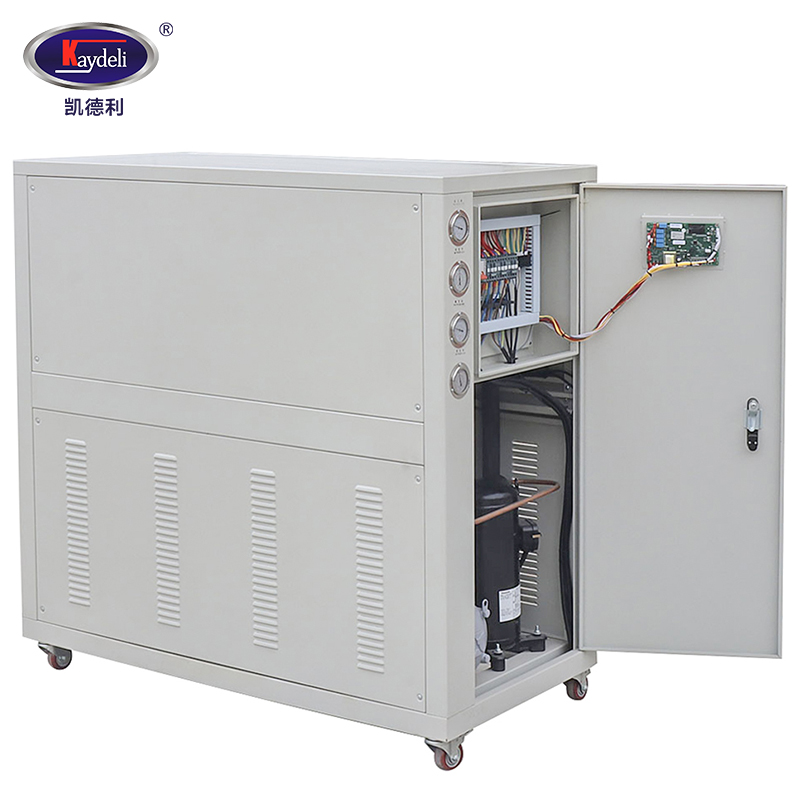

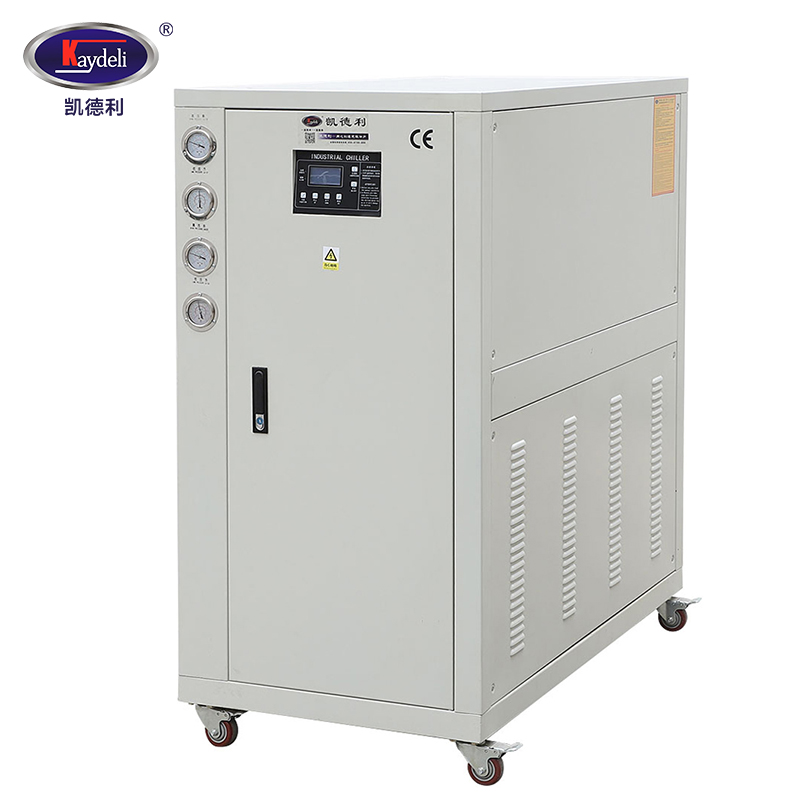

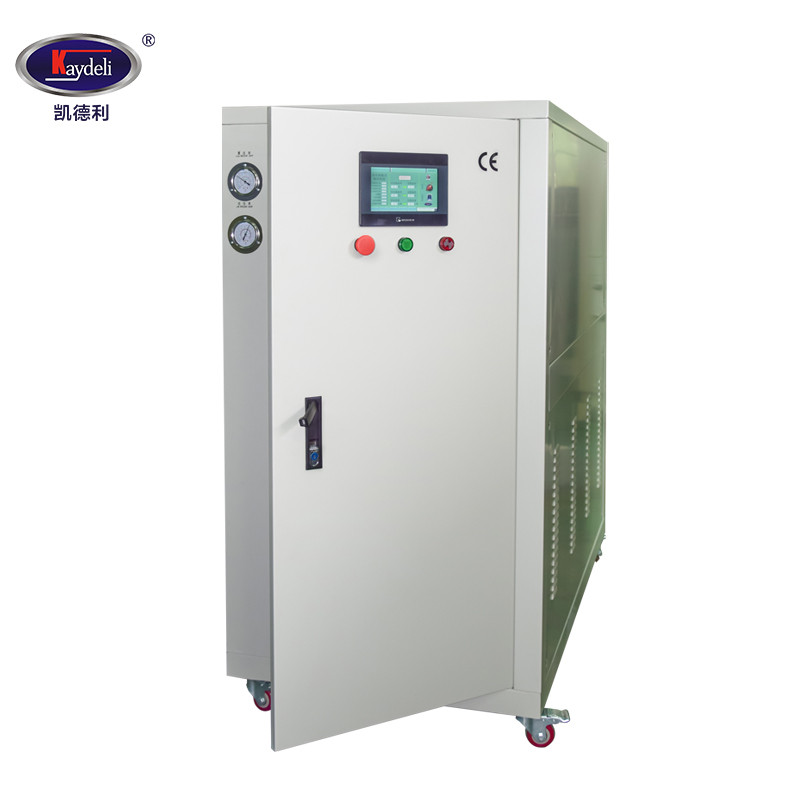

KWB series industrial chiller is mainly applied in Plastic & Rubber industry; it can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. They are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military industry.
Features:
¨ opted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.
¨ Chilled water temperature range 5℃ to 35℃.
¨ R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.
¨ Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.
¨ Microcomputer control system offering accurate temperature stability within ±1℃.
¨ Low noise and big volume air blower.
¨ Standard equipped Iron pump, stainless steel or high lift pump for option.
¨ Multi-protection devices ensure the chiller unit running safely.
¨ The innovative evaporator-in-tank configuration ensures a stey water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.
¨ KWB water cooled industrial chiller opted shell and tube condenser, features speed heat dissipation and high cooling efficiency, it is good to be used in High ambient temperature area with abundant water.
¨ Power supply: 1PH 220V/50HZ-----1/2HP to 2HP
3PH 380V/415V 50HZ-----3HP to 60HP
Water Cooled Water Chiller operation diagram
Specifications(cooling capacity from 9.5KW to 186.5KW for scroll type chiller, screw chiller could contact us):
Water-cooled Industrial Chillers Units Specifications | ||||||||||
Model | KWB | KWB | KWB | KWB | KWB | KWB | KWB | |||
cooling capacity | kW | 9.5 | 16.3 | 23.5 | 31.9 | 40.3 | 48.2 | 63.6 | ||
50HZ/60HZ | 11.8 | 19.6 | 28.2 | 38.3 | 48.4 | 57.8 | 76.3 | |||
kcal/h | 8,170 | 14,018 | 20,210 | 27,430 | 34,650 | 41,460 | 54,690 | |||
50HZ/60HZ | 9,804 | 16,822 | 24,252 | 32,916 | 41,580 | 49,752 | 65,628 | |||
Input power | kW | 2.4 | 4.1 | 6.0 | 8.1 | 10.3 | 12.4 | 16.5 | ||
Chilled fluid flow | m3/h | 1.6 | 2.6 | 4.3 | 5.5 | 6.9 | 8.2 | 10.8 | ||
1.9 | 3.1 | 5.2 | 6.6 | 8.3 | 9.8 | 13.0 | ||||
cooling fluid flow | m3/h | 2.0 | 3.2 | 5.4 | 6.8 | 8.6 | 10.3 | 13.9 | ||
2.4 | 3.8 | 6.5 | 8.2 | 10.3 | 12.4 | 16.7 | ||||
Power supply voltage | 3PH-380V-50HZ(200V/220V/415V 50HZ/60HZ) | |||||||||
Compressor | Mode | Hermetic scroll type (Piston) | ||||||||
Start-up mode | Sequential start | |||||||||
Power(kw) | 2.3 | 3.8 | 5.6 | 7.5 | 9.4 | 11.3 | 15.0 | |||
Refrigerant | Mode | R-22(R407c/R134a) | ||||||||
Control mode | Expansion valve | |||||||||
Filling amount(kg) | 1.5 | 2.5 | 4.0 | 5.0 | 6.2 | 7.5 | 10.5 | |||
Evaporator | Mode | Shell and Tube(Water tank with coil) | ||||||||
Pipe | B | PT 1" | PT 1-1/2" | PT 2" | ||||||
Condenser | Mode | Shell and Tube | ||||||||
Pipe | B | PT 1" | PT 1-1/2" | PT 2" | PT 2-1/2" | |||||
Tank volume | L | 60 | 60 | 130 | 130 | 130 | 180 | 180 | ||
pump power | kW | 0.37 | 0.75 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | ||
Protective device | Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing. | |||||||||
Dimension | L | mm | 890 | 1000 | 1300 | 1300 | 1400 | 1550 | 1700 | |
w | mm | 500 | 600 | 630 | 630 | 700 | 700 | 900 | ||
H | mm | 840 | 1080 | 1300 | 1300 | 1300 | 1340 | 1330 | ||
Weigh | kg | 130 | 180 | 310 | 330 | 400 | 520 | 630 | ||
Mode | KWB | KWB | KWB | KWB | KWB | KWB | KWB | |||
cooling capacity | kW | 78.2 | 95.2 | 108.3 | 125.1 | 139.8 | 155.3 | 186.5 | ||
50HZ/60HZ | 93.8 | 114.2 | 130.0 | 150.1 | 167.8 | 186.4 | 223.8 | |||
kcal/h | 67,250 | 81,870 | 93,130 | 107,580 | 120,230 | 133,560 | 160,390 | |||
50HZ/60HZ | 80,700 | 98,244 | 111,756 | 129,096 | 144,276 | 160,272 | 192,468 | |||
Input power | kW | 20.2 | 24.6 | 28.3 | 32.2 | 36.5 | 40.3 | 48.5 | ||
Chilled fluid flow | m3/h | 13.6 | 16.0 | 18.8 | 21.2 | 24.1 | 26.5 | 31.8 | ||
16.3 | 19.2 | 22.6 | 25.4 | 28.9 | 31.8 | 38.2 | ||||
cooling fluid flow | m3/h | 17.2 | 20.5 | 24.0 | 27.3 | 30.8 | 34.2 | 40.8 | ||
20.6 | 24.6 | 28.8 | 32.8 | 37.0 | 41.0 | 49.0 | ||||
Power supply voltage | 3PH-380V-50HZ(200V/220V/415V 50HZ/60HZ) | |||||||||
Compressor | Mode | Hermetic scroll type (Piston) | ||||||||
Start-up mode | Sequential start | |||||||||
Power(kw) | 18.8 | 22.5 | 26.3 | 30.0 | 33.8 | 37.5 | 45.0 | |||
Refrigerant | Mode | R-22(R407c/R134a) | ||||||||
Control mode | Expansion valve | |||||||||
Filling amount(kg) | 12.5 | 15.0 | 17.5 | 20.2 | 22.5 | 25.0 | 30.0 | |||
Evaporator | Mode | Shell and Tube(Water tank with coil | ||||||||
Pipe | B | PT 2-1/2" | PT 3" | |||||||
Condenser | Mode | Shell and Tube | ||||||||
Pipe | B | PT 2-1/2" | PT 3" | |||||||
Tank volume | L | 180 | 220 | 220 | 220 | 280 | 280 | 280 | ||
pump power | kW | 1.5 | 2.2 | 2.2 | 2.2 | 3.0 | 3.0 | 3.0 | ||
Protective device | Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing. | |||||||||
Dimension | L | mm | 1700 | 2100 | 2100 | 2100 | 2100 | 2100 | 2400 | |
w | mm | 900 | 900 | 900 | 1100 | 1100 | 1100 | 1100 | ||
H | mm | 1330 | 1380 | 1380 | 1430 | 1450 | 1450 | 1450 | ||
Weight | kg | 680 | 890 | 1000 | 1090 | 1300 | 1430 | 1600 | ||
Note: 1. Parameters of the above specifications:Inlet/outlet chilled fluid temperature:12℃/7℃ Inlet/outlet cooling water temperature:30℃/35℃ | ||||||||||
2.The above specifications are subject to change without notice, if there are special requirements, please ask for specifications before ordering. |

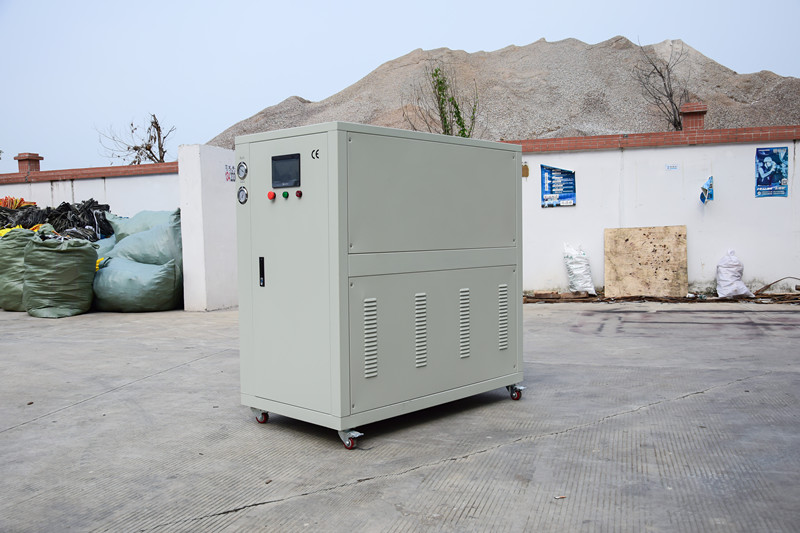

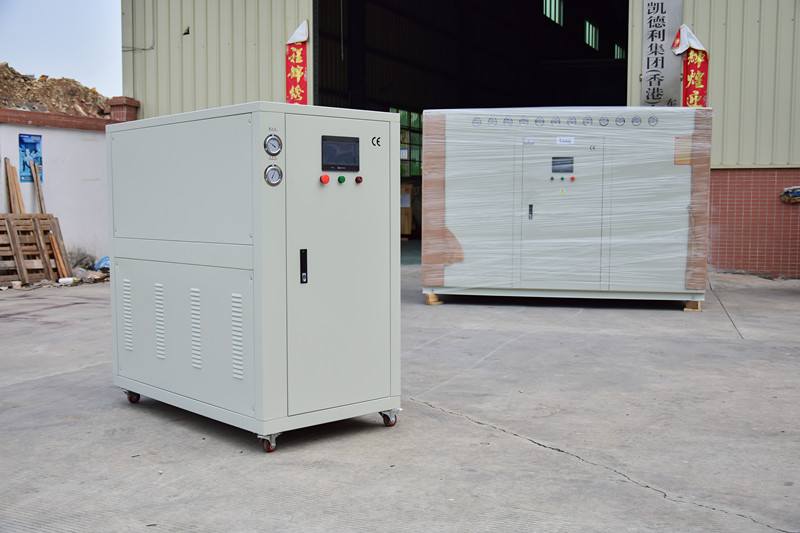

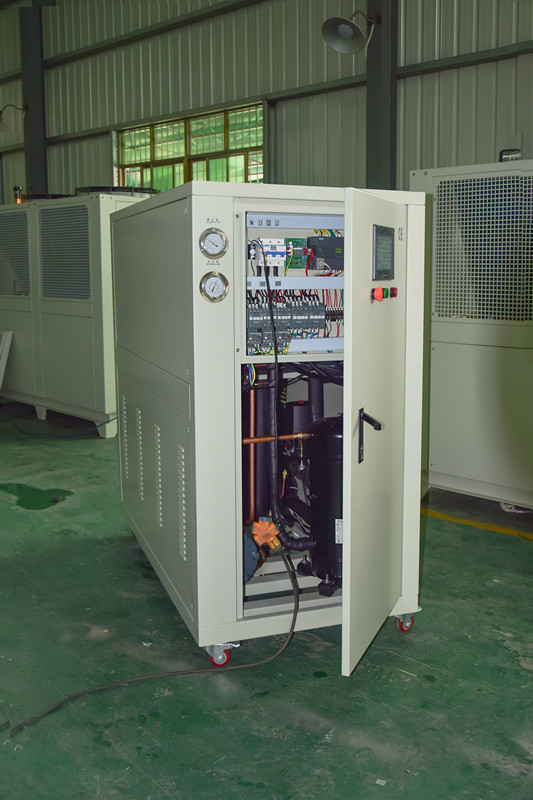

Actual KWB-003SA photoes shot in our factory:
