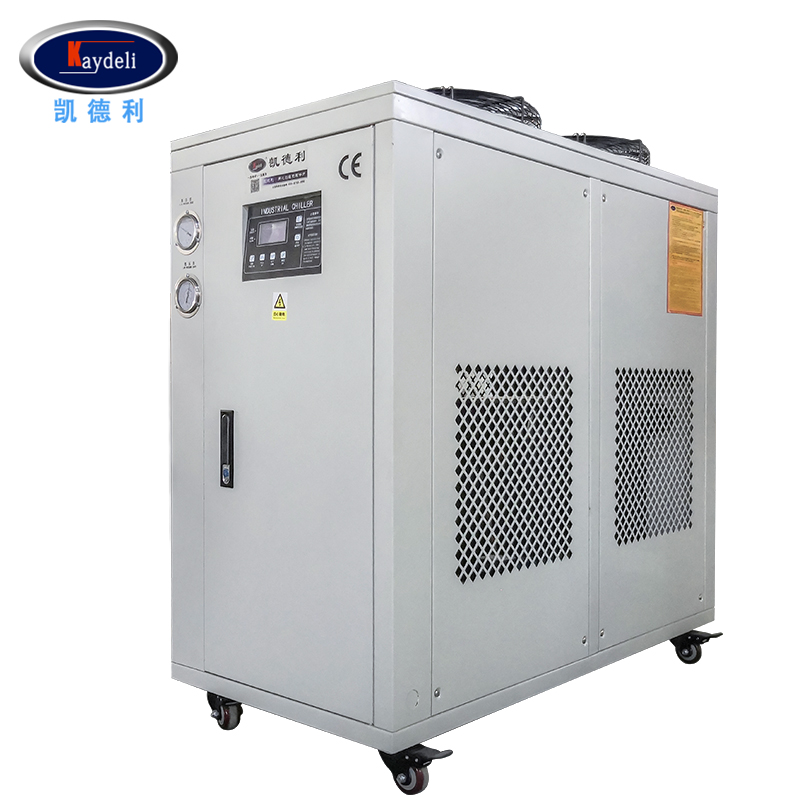

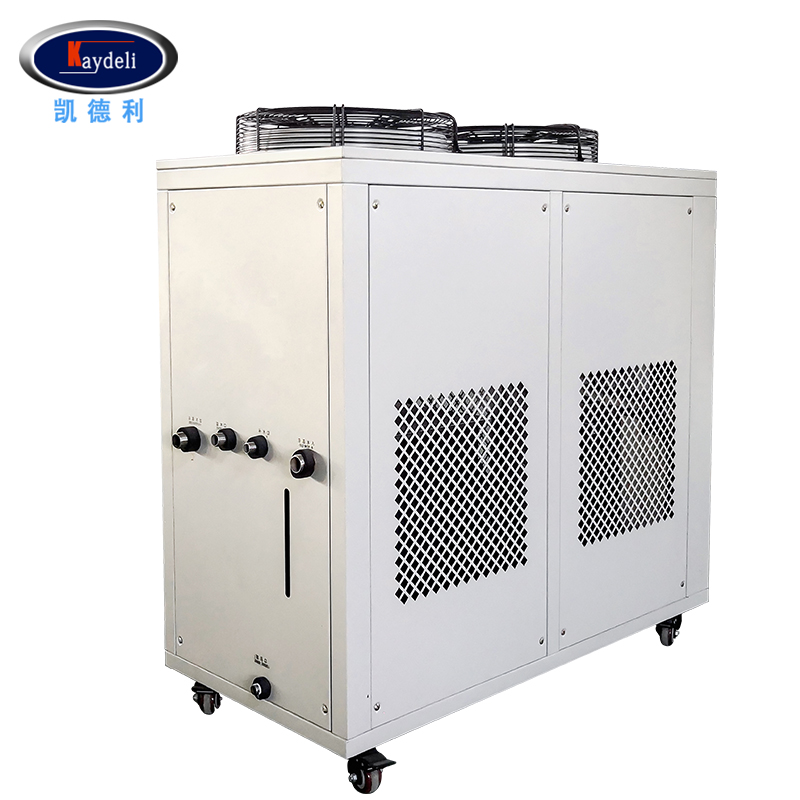

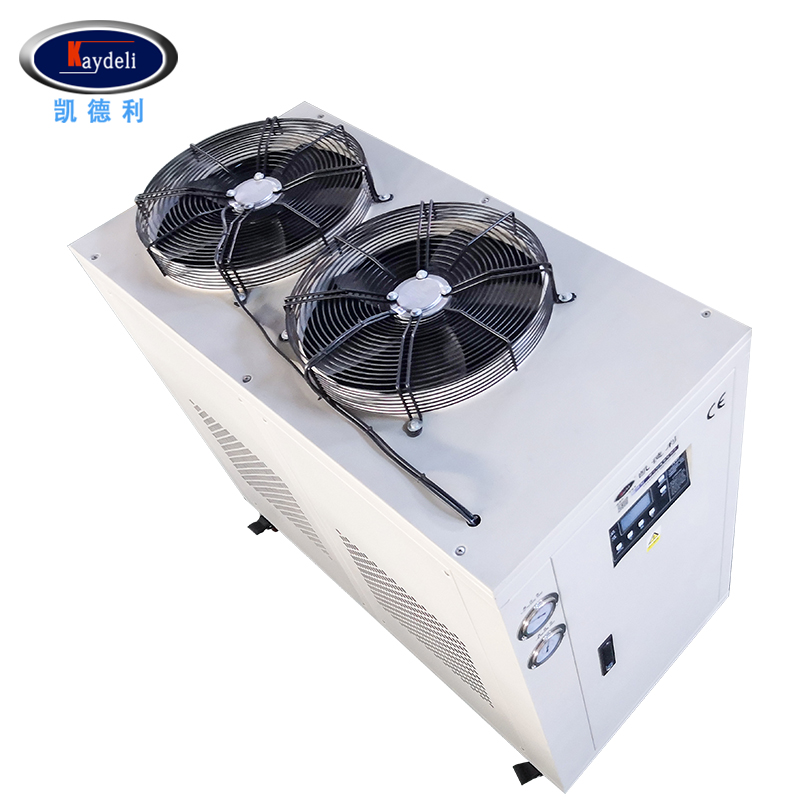

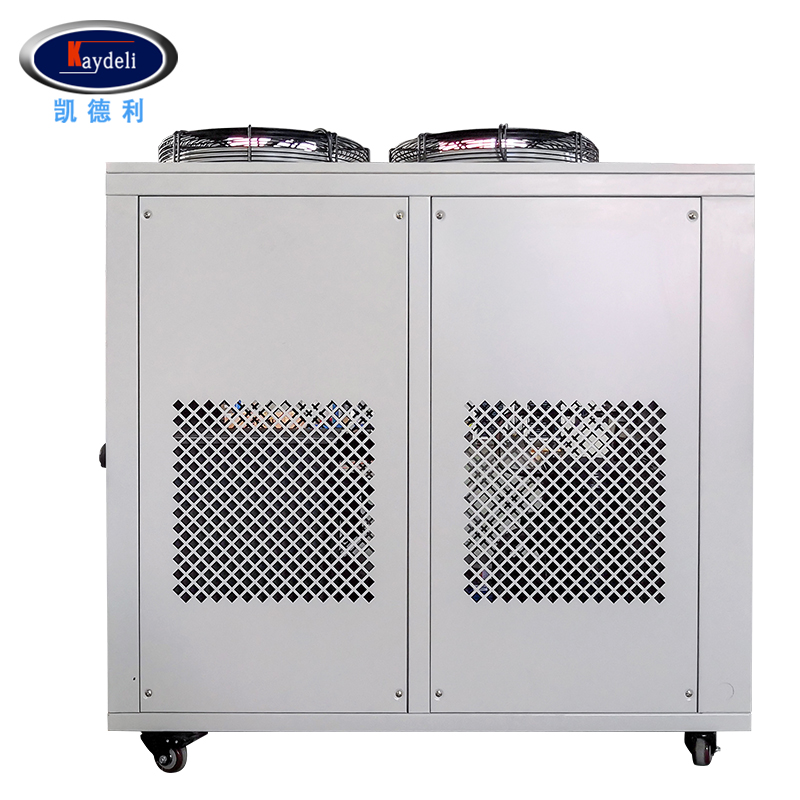

5 Ton Ice Skating Rink Air Water Chiller Glycol Cooler Mix Machine
5 Ton Ice Skating Rink Air Water Chiller Glycol Cooler Mix Machine
5 Ton Ice Skating Rink Air Water Chiller Glycol Cooler Mix Machine
5 Ton Ice Skating Rink Air Water Chiller Glycol Cooler Mix Machine
5 Ton Ice Skating Rink Air Water Chiller Glycol Cooler Mix Machine
×

5 Ton Ice Skating Rink Air Water Chiller Glycol Cooler Mix Machine 5 Ton Ice Skating Rink Air Water Chiller Glycol Cooler Mix Machine

KC- series 5 ton industrial air cooled chiller is mainly applied in Plastic & Rubber industry; it can accurately control the molding temperature and shorten the molding cycle, increase the product quality and improve the production efficiency. 5 ton air cooled chillers are also widely used in Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military industries.

Quantity:
Share this:
  • Product Specifications
  • 5 Ton Chiller Features
  • Certification
  • Payment & Shipping FAQ
ModelKC-006SA
Power Supply Voltage3PH-380V-50HZ (220V/220V/415V 50HZ/60HZ)
Cooling Capacity5 ton (18.0 kw, 15,310 kcal/h)
Compressor TypeHermetic scroll type (Piston)
Compressor Power5.1 kw
Refrigerant TypeR22 (R407c/R134a Optional)
Refrigerant Control ModeExpansion valve
Refrigerant Filling Amount4.3 kg
EvaporatorShell and Tube (Water tank with coil)
CondenserFinned type
Cooling Fan TypeLow noise axial flow (Low noise outer rotor fan)
Cooling Fan Air volume126 cmm
Cooling Fan Power0.42 kw
Tank Volume70 L
Water Pump Power0.75 kw
Input Power6.30 kw
Chilled Fluid Flow3.1 m3/h
DimensionL*W*H=1140*560*1040mm
Weight190 kg
NoteTechnical specifications based on 12°C/7℃ Inlet/outlet chilled fluid temperature. Outdoor ambient temperature DB35℃/WB24℃. Data is subject to change without notice.

The above 5 ton air cooled chiller technical parameters are subject to continuous update, please take the real product as the base. Product details of 5 ton chiller, you can contact us to know more.

Kaydeli, as a professional 5 ton chiller in China, offers various types of air cooled screw chillers and professional customization services.

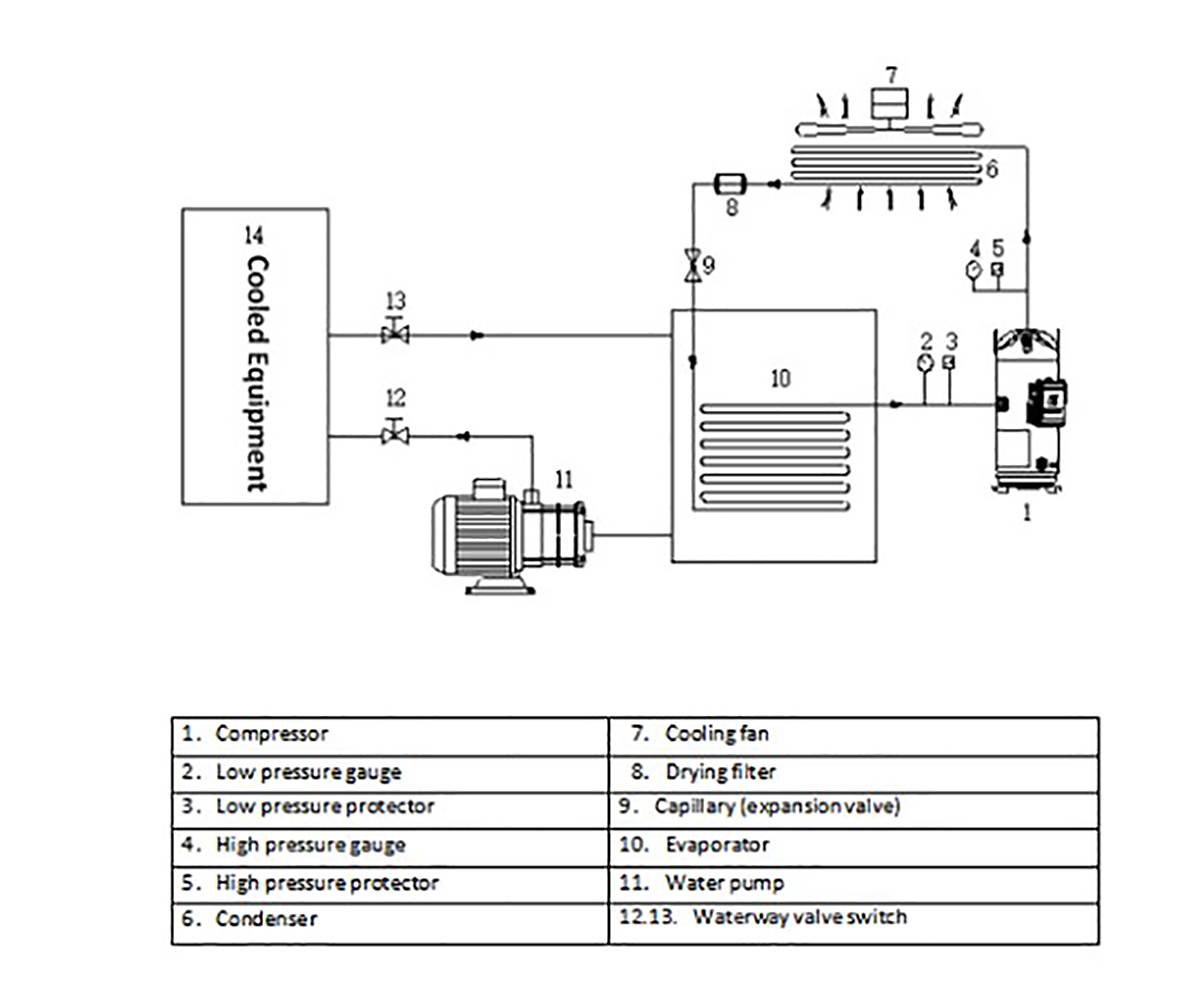

KC-006SA 5 Ton Air Cooled Chiller Operation Structure Diagram

KC-006SA 5 Ton Air Cooled Chiller Operation Structure Diagram

  • opted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.

  • Chilled water temperature range 5℃ to 35℃.

  • R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency.

  • Over sized evaporator and condenser ensure the chiller unit running under 45C high ambient temperature.

  • Microcomputer control system offering accurate temperature stability within ±1℃.

  • Low noise and big volume air blower.

  • Standard equipped Iron pump, stainless steel or high lift pump for option.

  • Multi -protection devices ensure the chiller unit running safely.

  • The innovative evaporator-in-tank configuration ensures a stey water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat gain, and increases the efficiency.

  • KC air cooled industrial chiller opted aluminum fin/copper tube type condenser, easy for cleaning and installation.

  • Power supply: 1PH 220V/50HZ-----1/2HP to 2HP; 3PH 380V/415V 50HZ-----3HP to 60HP

1. Do you have any MOQ limit for 5 ton chiller?

Low MOQ, 1pc for sample checking is available.

2. How do you ship the goods and how long does it take to arrive?

We usually ship by sea, we could ship the standard chiller in 3-15 days, customized chiller in 25-35working days.

3. Do you offer guarantee for the 5 ton air cooled chillers?

Yes, we offer 12 months warranty to our products.

4. Are your air cooled chiller products can be customized?

Yes. Also welcomed to customized non-standard products, can achieve to -180 degree Celsius and EXDIIBT4 Explosion-proof chiller.

5. Whats your payment term?

International term-30% deposit for production, 70% balance before shipment.

×
