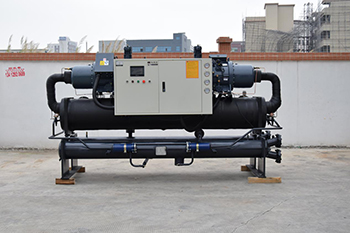

The Kaydeli low temperature -20°C water-cooled glycol chiller unit is engineered to deliver reliable, high-performance cooling for demanding industrial environments. Built with world-class compressors and advanced control technology, this chiller ensures exceptional cooling efficiency, precise temperature stability, and long-term operational reliability. It is specifically designed for industries that require deep low-temperature conditions, such as chemical processing, pharmaceutical production, food freezing, and specialized manufacturing applications.
The Kaydeli -20°C water-cooled glycol chiller unit combines high-end components with optimized system design to achieve efficient and reliable low-temperature performance. It provides a stable outlet temperature down to –20°C, ensuring consistent cooling for low-temperature process requirements.
Premium Screw Compressors
Equipped with Taiwan “Hanbell” / “Chinese Variety” or German Bitzer screw compressors, known for high precision, excellent performance, and strong durability. The advanced rotor grinding technology ensures smoother operation, lower vibration, and higher cooling efficiency.
High-Efficiency Shell-and-Tube Evaporator
Uses a shell-and-tube evaporator with low refrigerant charge, simple oil return, and no need for an additional oil pump—reducing maintenance costs while improving operation stability.
Electronic Expansion Valve for Precise Control
The system adopts an electronic expansion valve, allowing accurate refrigerant flow control, improved evaporation efficiency, and enhanced energy savings.
Advanced Microcomputer Control System
Integrated intelligent control system provides real-time monitoring, fault diagnosis, automatic protection, and stable operation. Users can easily manage temperature settings and system performance.
Wide Application Range
Suitable for low-temperature freezing, industrial refrigeration, chemical processes, pharmaceuticals, food processing, metal treatment, and other industries requiring precise low-temperature cooling.
Deep Low-Temperature Capacity
The unit achieves an outlet glycol temperature of –20°C, ensuring stable performance under demanding conditions.
Optional Building/Group Control Integration
Supports centralized control, remote monitoring, and building automation systems (optional), enabling advanced multi-unit management for large industrial facilities.
Chemical processing and reaction cooling
Pharmaceutical manufacturing
Food and beverage low-temperature processing
Industrial freezing and storage
Metal treatment, plating, and electrochemical processes
Precision machinery cooling
Model Project | KDSL-080SLA | |||
-20℃ Cooling capacity | kcal/h | 87,246 | ||
KW | 101.4 | |||
Power supply | 3PH-380V/50Hz | |||
Power consumption | KW | 48.7 | ||
Refrigerant | Type | R404a | ||
Filling amount(kg) | 41 | |||
Control mode | Temperature-sensitive expansion valve | |||
Compressor | Type | Semi-closed screw | ||
Power | KW | 48.7 | ||
Start mode | Y-△start | |||
Capacity control type（%） | 0,25,50,75,100 | |||
Condenser | Type | Shell and tube | ||
Cooling fluid flow（m3/h） | 48.0 | |||
Pipe | PT4″ | |||
Protective devices | Compressor overheating,over current,high and low pressure,over temperature,flow switch,phase sequence,phase-missing,exhaust overheating,anti-freezing protection. | |||
Dimension | L×W×H | mm | 3100*1000*1450 | |
Weight | KG | 1680 | ||
Yes. Also welcomed to customized non-standard products.
International term-30% deposit for production, 70% balance before shipment.
We usually ship by sea. Sometimes shipped by air. Takes 10-25working days according to the destination.
Yes, we offer 12 month's warranty on our products.
Low MOQ, 1 set chiller is available.
Our products have been widely used in many industries, like the plastic industry, chemical industry, New Energy industry, Pharmaceutical industry, Laboratory, Food and beverage, Aquacultural and agricultural, Environmental protection industry, low-temperature application, so on so forth.
Yes! We do. The shipment is done by a third party. The shipment cost is free inside China. For overseas you can select shipping agents by yourself or we can support you to find reliable shipment companies.
