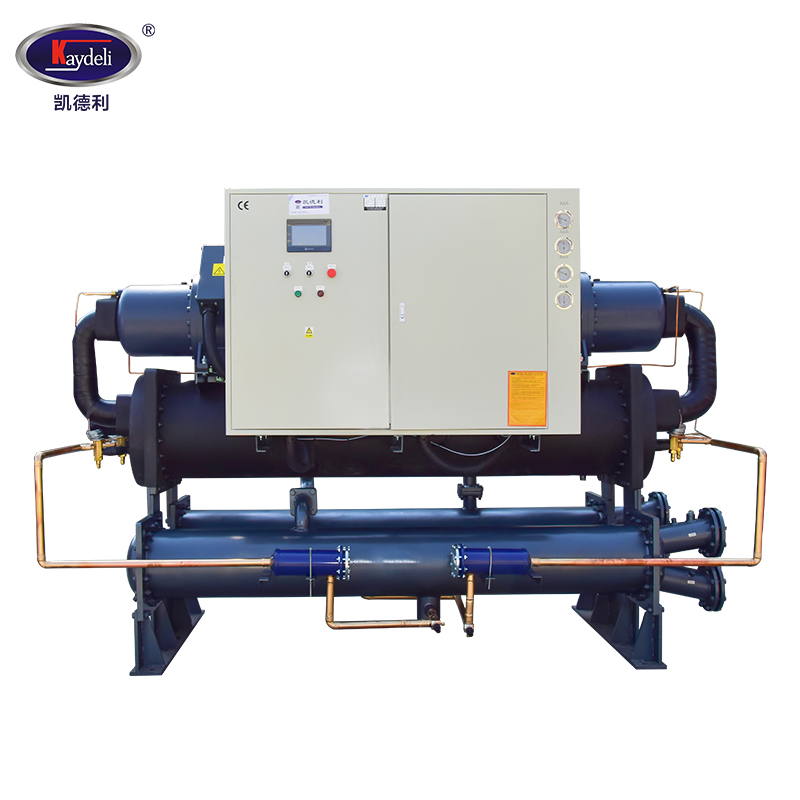

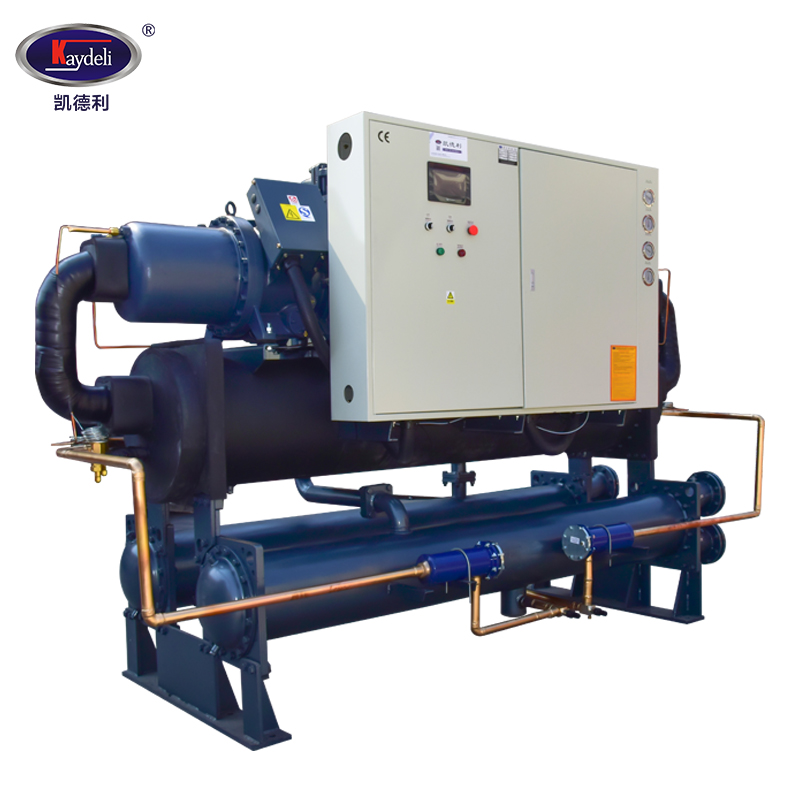

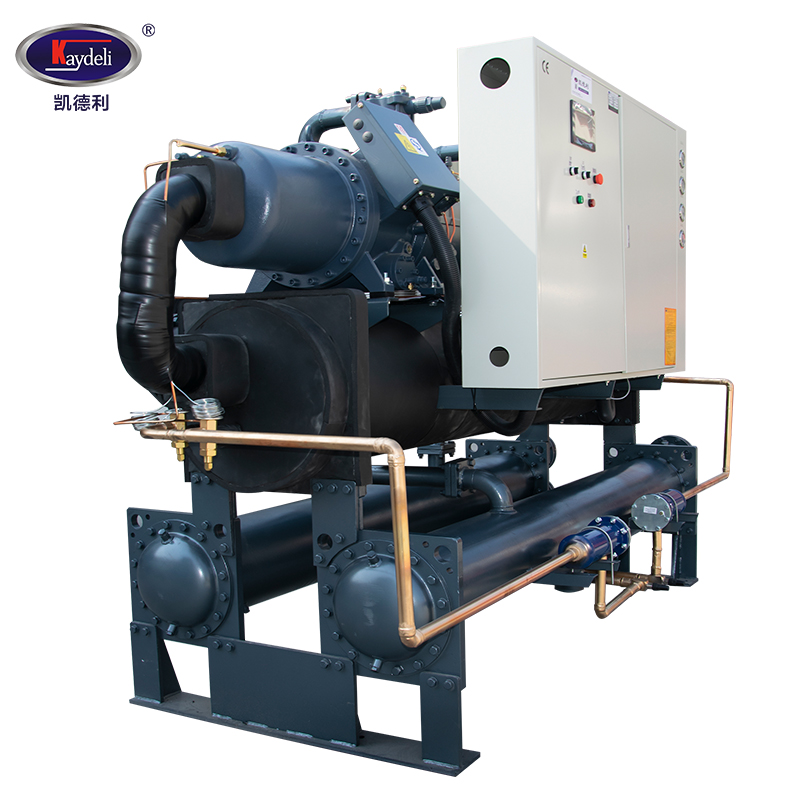

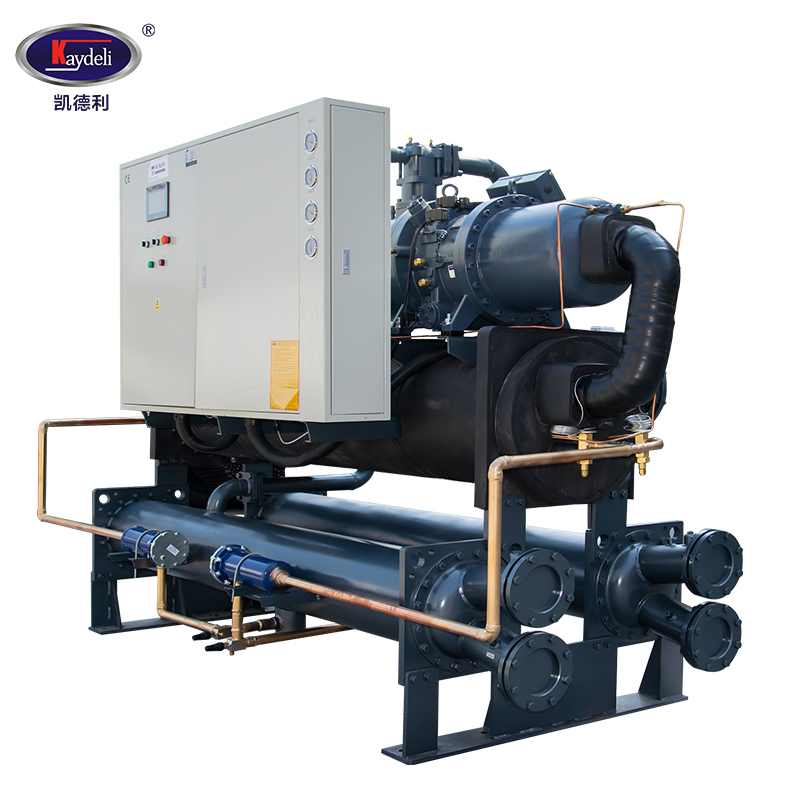

150ton 180hp Water-cooled Screw Chillers in plastic industry for extruder, injection machine, blowing machine
150ton 180hp Water-cooled Screw Chillers in plastic industry for extruder, injection machine, blowing machine
150ton 180hp Water-cooled Screw Chillers in plastic industry for extruder, injection machine, blowing machine
150ton 180hp Water-cooled Screw Chillers in plastic industry for extruder, injection machine, blowing machine
150ton 180hp Water-cooled Screw Chillers in plastic industry for extruder, injection machine, blowing machine
×

150ton 180hp Water-cooled Screw Chillers in plastic industry for extruder, injection machine, blowing machine 150ton 180hp Water-cooled Screw Chillers in plastic industry for extruder, injection machine, blowing machine

Water-cooled screw chillers are widely used in factory equipment cooling and chemical, food, steel, electronics, reactors, fermentation tanks, freezing and refrigeration, and other industries of different scales in industrial refrigeration projects. KDS screw chillers have been our company for many years. The experience of designing and producing water chillers, combined with the latest technological development, has concentrated on research, design and development of chillers. The product keeps up with the development trend of the times, adhering to the design concept of "high efficiency, reliability, energy saving, and environmental protection" to provide users with an excellent refrigeration equipment. Can provide aqueous solution and 7~30℃ cold water, or 5~10℃ temperature difference (import and export) large temperature difference frozen water.

Quantity:
Share this:
  • Product details
  • Kaydeli Introduction
  • What we could do for U?

Features:

Well Known Brand Compressor

¨ Unit adopts Germany BITZER or Taiwan HANBELL brand semi-hermetic screw compressor. The latest 5 to 6 patented screw rotor profile with excellent efficiency.

¨ Adjustable infinite or closely stepped capacity control features energy-efficient, stable and quiet running.

¨ Most advanced patented highest precision manufacturing process.

¨ Built-in full intelligent monitoring and protection including thermal motor temperature monitoring, phase sequence monitoring, manual reset lock-out, and oil temperature sensor.

¨ Wide range of refrigerants for options, including R134a, R407c, and R22(R404a, R507c upon request).

Micro-programming Control System

¨ Industrial PLC centralized control combined with compressor capacity control system, precisely monitor.

¨ Integrated protection for low temperature, high/low pressure, anti-freezing, phase missing, anti-phase, overload, motor over temperature, oil differential, flow switch, and start-up latency.

¨ Optional operation language, menu leading, unit running state easy to adjust.

Easy Installation, Reliable Running

¨ Closely stepped start-up, minimize impact to electricity.

¨ Steady and safe running, low vibration, easy for installation.

¨ Compact structure, less space demand and light in weight, easy for transport and installation.

¨ Completely wired, inspected, and tested pre-delivery, saving installation time and cost.



Water Cooled Water Chiller operation diagram




Specifications(cooling capacity from 108KW to 866KW for scroll type chiller, screw chiller could contact us):



Water-cooled Screw Chillers Units Specifications

 Model

KDS-030S

KDS-040S

KDS-050S

KDS-060S

KDS-080S

KDS-090S

KDS-100S

Power  supply voltage

3Φ-50Hz-380V

cooling capacity

kw

108

148

173

198

260

293

335

kcal/h

92,880

127,280

148,780

170,280

223,600

251,980

288,100

Input power

kw

22.0

30

36.0

41

55.2

61.0

64.8

Chilled fluid flow

m3/h

18

24

29

33

46

50

54

 Cooling fluid flow

m3/h

22

29

35

40

55

62

68

Power  supply voltage

3PH-380V-50HZ200V/220V/415V     50HZ/60HZ

Compressor

 Type

 Semi-Hermetic screw type

Number

1

Starting method

Y -

Capacity control type(%)

0,33,66,100

0,25,50,75,100

Power(kw)

22

30

36

41

55.2

61

64.8

Refrigeration oil

 Type

SUNISO 4GS

Charge

L

7

7

7

8

12

16

16

Refrigerant

 Type

R-22

Control mode

Thermostatic expansion valve

Charge

kg

16

21

27

32

42

48

54

Evaporator

 Type

 Shell and Tube

Pipe

B

PT 2-1/2"

PT 3"

PT 4"

Condenser

 Type

 Shell and Tube

Pipe

B

PT 3"

PT 4"

Protective device

Compressor overheating, over current, high and low pressure, over temperature, flow switch, phase sequence,phase-missing, exhaust overheating,anti-freezing protection.

Dimension

L

mm

2500

2500

2500

2500

3100

3100

3100

W

mm

900

900

900

900

900

900

900

H

mm

1450

1500

1600

1700

1750

1860

1860

 Weight

kg

1020

1150

1350

1500

1680

1800

1930


 Mode

KDS-120S

KDS-150S

KDS-180S

KDS-200S

KDS-220S

KDS-240S

KDS-260S

Power  supply voltage

3Φ-50Hz-380V

 cooling capacity

kw

409

480

572

638

715

805

866

kcal/h

351,740

412,800

491,920

548,680

614,900

692,300

744,760

Input power

kw

79.0

100.0

110.5

121.8

137.0

154.5

166.8

Chilled fluid flow

m3/h

68

80

95

106

122

132

140

 Cooling fluid flow

m3/h

82

98

116

129

148

155

172

Power  supply voltage



3PH-380V-50HZ200V/220V/415V     50HZ/60HZ

Compressor

 Type

 Semi-Hermetic screw type

Number

1

Starting method

Y -

Capacity control type(%)

0,25,50,75,100

Power(kw)

79

100

119

132

148

167

180

Refrigeration oil

Type

SUNISO 4GS

Charge

L

16

18

23

23

28

28

28

Refrigerant

 Type

R-22

Control mode

 Thermostatic expansion valve

Charge

kg

64

73

92

103

116

122

131

Evaporator

 Type

 Shell and Tube

Pipe

B

PT 5"

PT 6"

PT 8"

Condenser

 Type

 Shell and Tube

Pipe

B

PT 5"

PT 6"

PT 8"

Protective device

Compressor overheating, over current, high and low pressure, over temperature, flow switch, phase sequence,phase-missing, exhaust overheating,anti-freezing protection.

Dimension

L

mm

3200

3500

3500

3650

3650

3950

3950

W

mm

1100

1200

1200

1300

1350

1400

1400

H

mm

1500

1550

1600

1600

1650

1650

1700

Weight

kg

2250

2500

2650

2850

3000

3350

3600

Note: 1. Working conditions for the determination of the capacity of the above specifications: chilled water inlet temperature 12°C, outlet temperature 7°C, cooling water inlet temperature 30°C, outlet temperature 35°C, fouling coefficient 0.0001m2°C/D

      2. The above specifications are subject to change without notice. If there are special requirements, please ask for specifications before ordering.

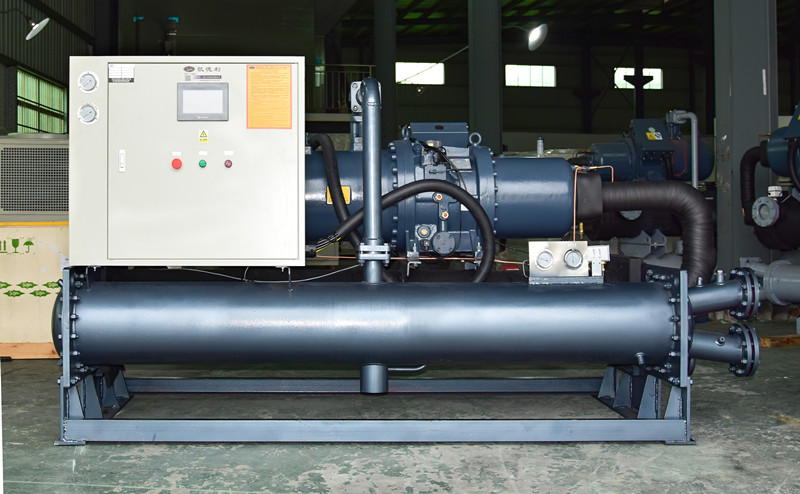

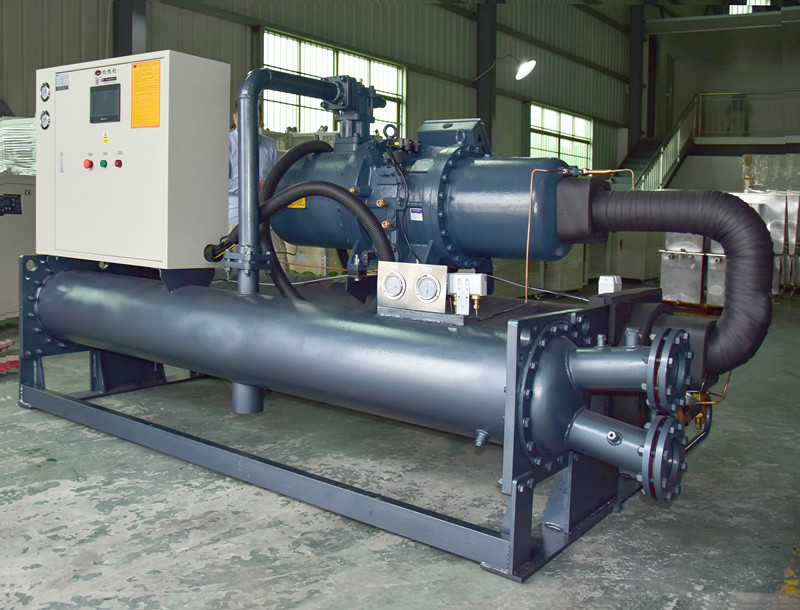

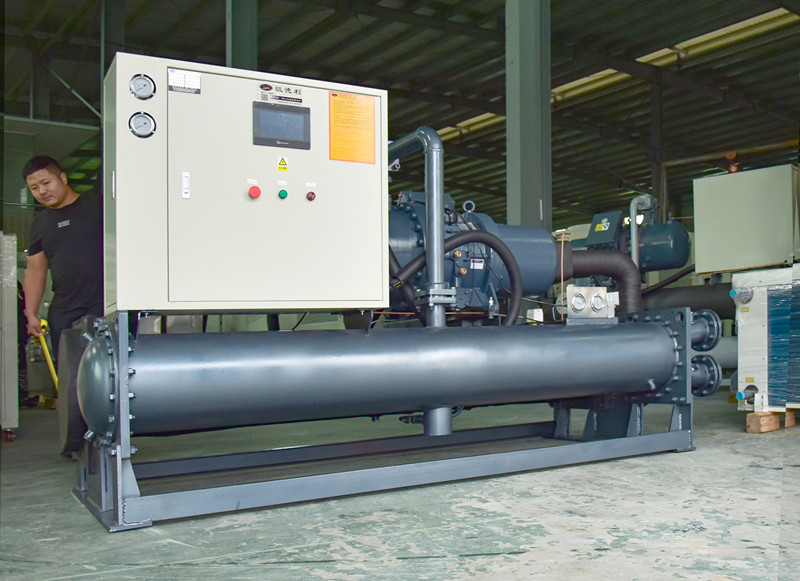

Actual KDS-180DLA photos shot in our factory:
