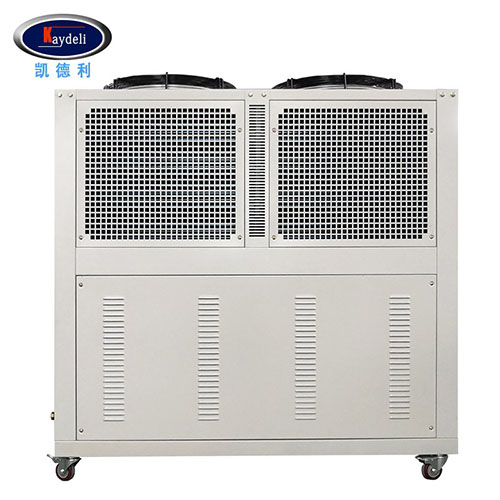

Heat pump units offer a cost-effective, energy-efficient, and easy-to-install option for heating and cooling in a wide range of applications. One of the main advantages of an air-cooled industrial heat pump unit is that it can provide efficient heating and cooling without the need for external water sources. This makes it a good option for locations where water is scarce or expensive.
| Model | KCPH-020 | ||
| Cooling capacity | kW | 56.5 | |
| kcal/h | 48590 | ||
| Heating capacity | kW | 67.1 | |
| kcal | 57720 | ||
| Power consumption | kW | 17.6 | |
| Chilled fluid flow | m3/h | 6.9 | |
| Power supply voltage | 3PH-(200V,220V, 415V,380V)-50HZ/60Hz | ||
| Compressor | Type | Hermetic scroll/piston | |
| Start-up mode | Direct start | ||
| Power | kW | 15 | |
| Refrigerant | Type | R22, (R407c/R134a) | |
| Control mode | Temperature-sensitive expansion valve | ||
| Filling amount | kg | 13.3 | |
| Water heat exchanger | Type | Shell and Tube | |
| Pipe | B | PT 2" | |
| Air heat exchanger | Type | Internal thread copper tube fin | |
| Surface area/row | M2 | 3.06/4R | |
| Axial fan | Type | Low noise axial flow | |
| Air Volume | CMM | 390 | |
| Power | kW | 0.55×2 | |
Protective devices | High and low voltage switches, antifreeze protection, soluble plugs, safety valves, overload protection devices, coil overheat protectors, temperature automatic protection switches, etc. | ||
| Dimension | L | mm | 1860 |
| W | mm | 1220 | |
| H | mm | 1700 | |
| Weight | kg | 600 | |
Note:
The measurement condition of the specifications and parameters: cooling water outlet/inlet temperature 12℃/7℃, outdoor ambient temperature DB35℃/WB24℃; hot water outlet/inlet temperature 40℃/45℃ outdoor ambient temperature DB7℃/WB6℃.
The above specifications are subject to change without prior notice. If there are special requirements, please for specifications before ordering.
