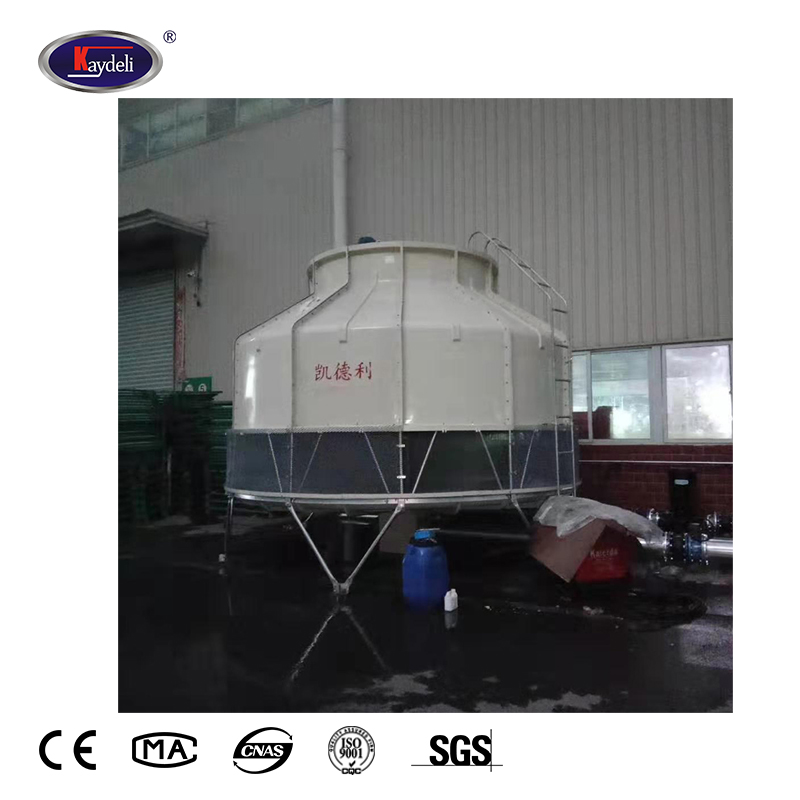

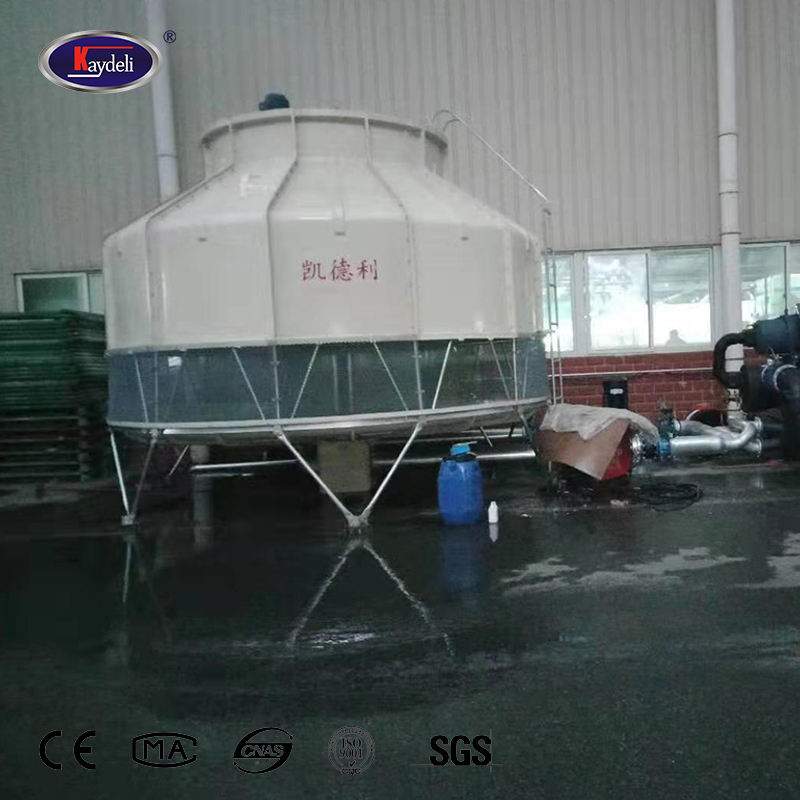

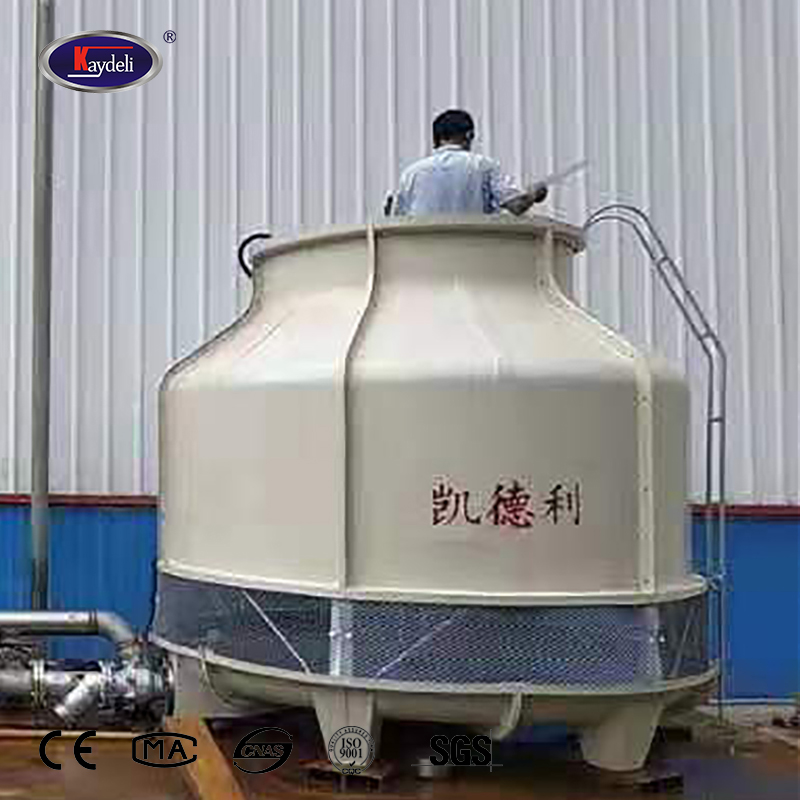

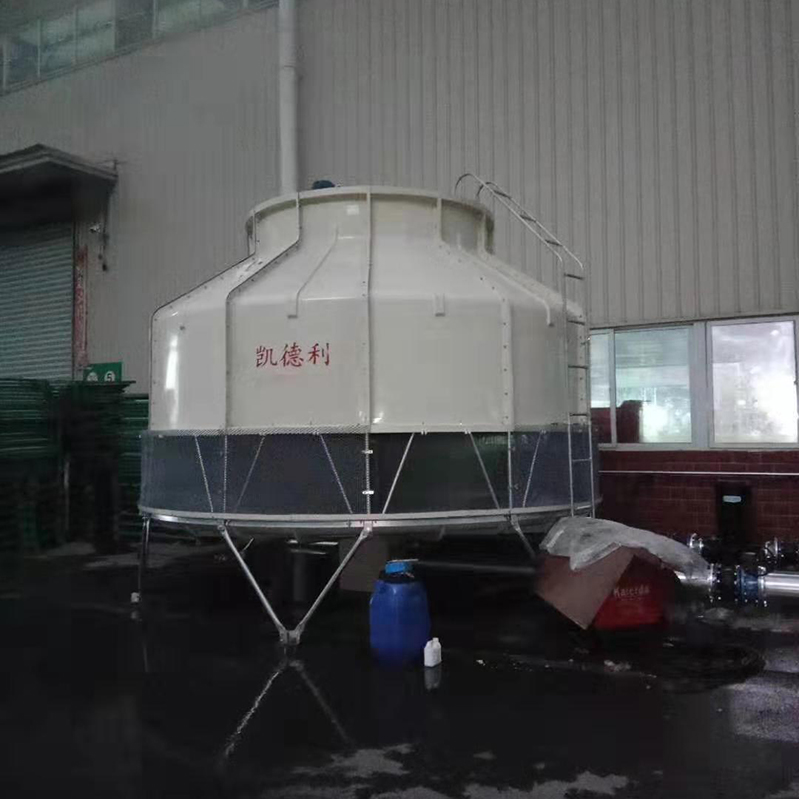

KWT-20 water cooling tower

Water cooling tower

A cooling tower is a device that uses water as a circulating coolant to absorb heat from a system and discharge it into the atmosphere to reduce the temperature of the water; its cooling is to use water and air to flow in contact with each other to exchange cold and heat to produce steam, and steam volatilizes to take away heat to achieve evaporation The principle of heat dissipation, convection heat transfer, and radiation heat transfer to dissipate the waste heat generated in the industry or refrigeration and air conditioning to reduce the water temperature evaporative heat sink to ensure the normal operation of the system.

KWT-20 parameters:

Project	Content	Data	Notes
Basic Data	Cooling tower type	Counterflow circular cooling tower	Ton
	Cooling tower Model	KWT-20	Standard
	Circulating cooling water flow	15.62m3/h
	In ／Out temperature	37℃／32℃
	Ambient Dry／Wet ball Temp.	31.5℃／28℃
	Refrigerating capacity	78,100 kcal/h
	Noise value	63.0dB(A)	Away tower 16M
	Power supply	380V／3P／50Hz
	Water quality	ＰＨ value＝６－８
Design Data	Air-water ratio	0.70kg/kg
	Flying water loss	≤0.02%
	Evaporating water loss	≤0.833%
	Net weight	80kg
	Application weight	320kg
Fan Data	Fan type	Axial flow
	Air volume	9,650m3/h
	Fan speed	960r/min
	Fan leaf diameter（F）	630mm
	Fan leaf number	4 Pieces／Set
	Rotor type	Direct rotor
	Motor speed	960r/min
	Motor power	0.37 kW
	Motor start method	Direct start
Main size	Tower diameter（F）	1,170mm
	Tower height（H）	1,770mm
	In／out tube size（DN）	50mm／50mm
	Overflow/drain pipe size （DN）	25mm／25mm
	Automatic hydration size（DN）	15mm
Material	Motor	Hermetic waterproof type
	Fan	A.B.S
	Shell	Glass steel F.R.P	High-quality
	Basin	Glass steel F.R.P	High-quality
	Sprinkler system	P.V.C
	Film	P.V.C	Flame retardant
	Float valve	A.B.S
	Inlet system	P.V.C
