A cooling tower is a device that uses water as a circulating coolant to absorb heat from a system and discharge it into the atmosphere to reduce the temperature of the water; its cooling is to use water and air to flow in contact with each other to exchange cold and heat to produce steam, and steam volatilizes to take away heat to achieve evaporation The principle of heat dissipation, convection heat transfer, and radiation heat transfer to dissipate the waste heat generated in the industry or refrigeration and air conditioning to reduce the water temperature evaporative heat sink to ensure the normal operation of the system.

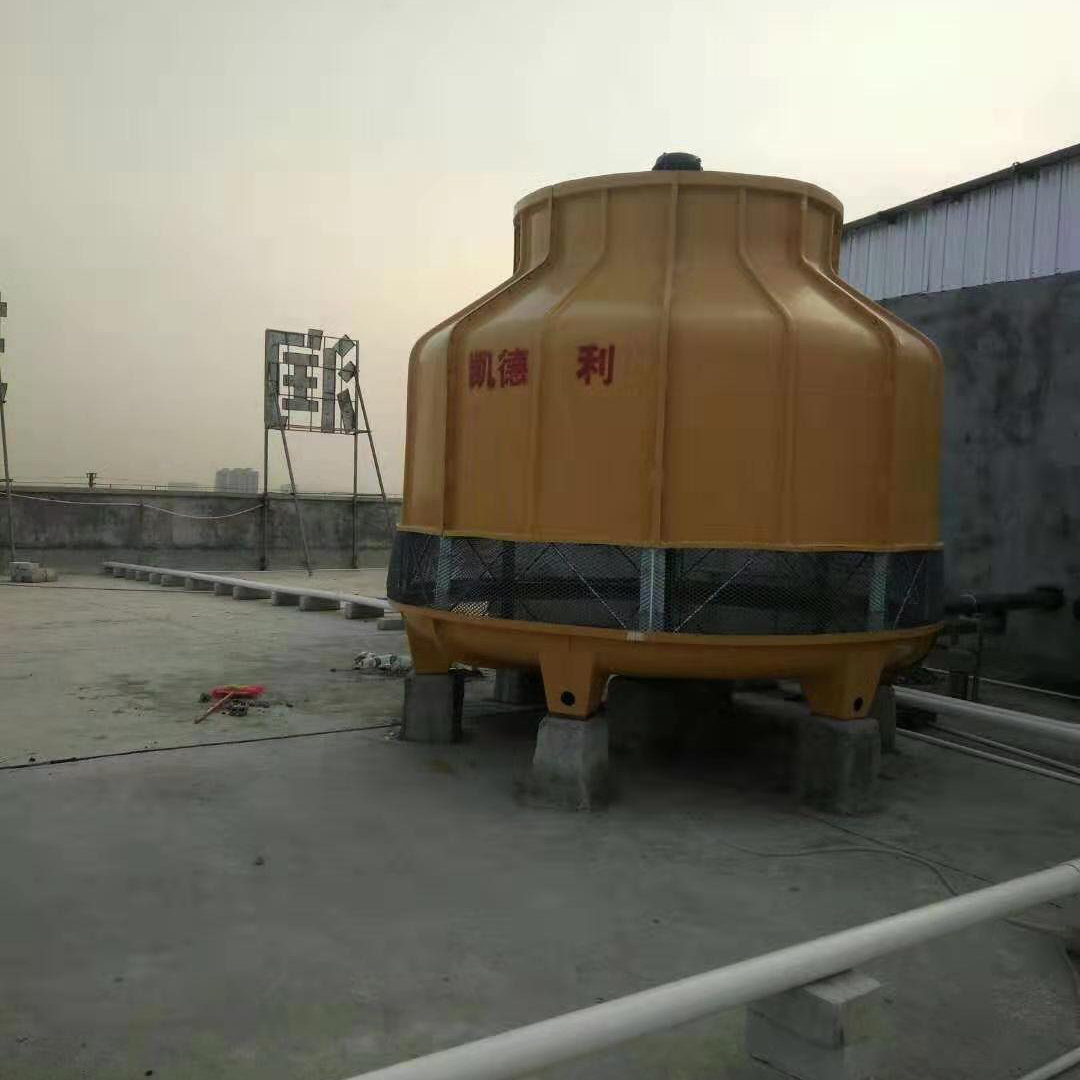

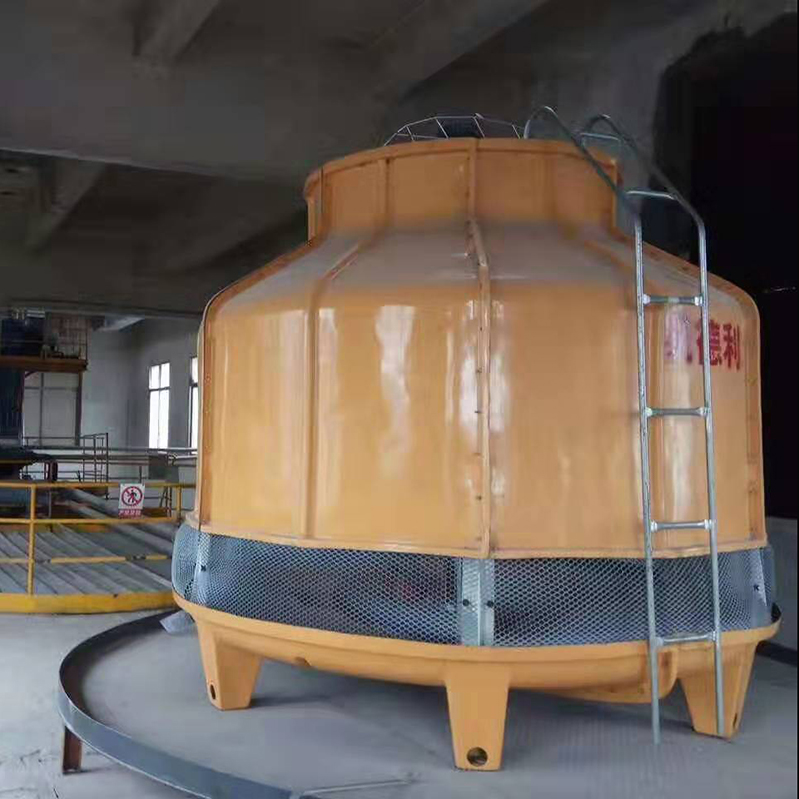

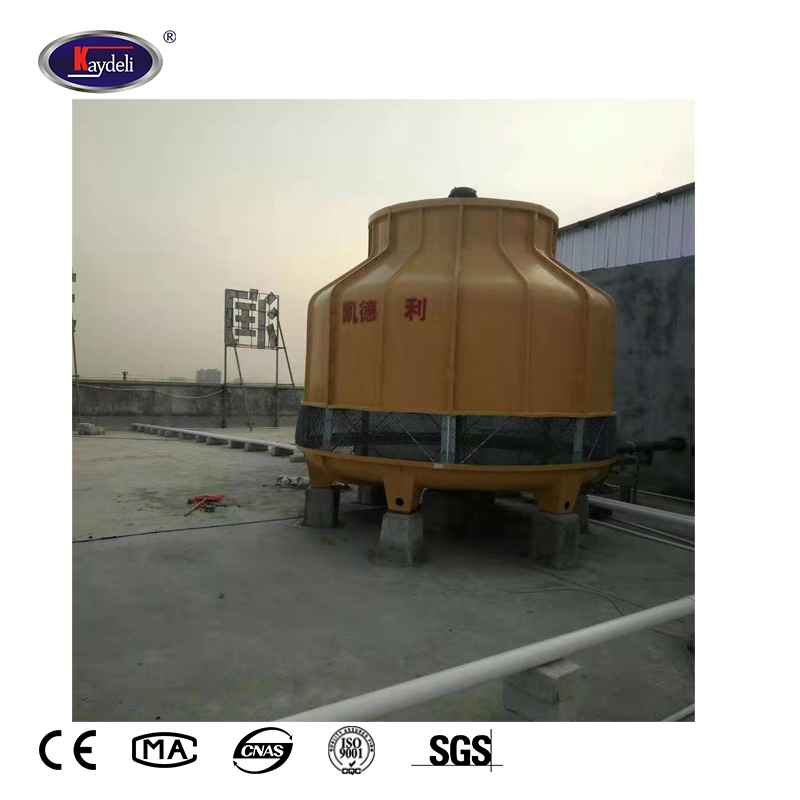

50 HP water cooling tower's parameter
Project | Content | Data | Notes |
Basic Data | Cooling tower type | Counterflow circular cooling tower | Ton |
Cooling tower Model | KWT-50 | Standard | |
Circulating cooling water flow | 39.24m3/h | ||
In ／Out temperature | 37℃／32℃ | ||
Ambient Dry／Wet ball Temp. | 31.5℃／28℃ | ||
Refrigerating capacity | 196,200kcal/h | ||
Noise value | 63.5dB(A) | Away tower 16M | |
Power supply | 380V／3P／50Hz | ||
Water quality | ＰＨ value＝６－８ | ||
Design Data | Air-water ratio | 0.57kg/kg | |
Flying water loss | ≤0.02% | ||
Evaporating water loss | ≤0.833% | ||
Net weight | 210kg | ||
Application weight | 1050kg | ||
Fan Data | Fan type | Axial flow | |
Air volume | 24,000m3/h | ||
Fan speed | 960r/min | ||
Fan leaf diameter（F） | 930mm | ||
Fan leaf number | 4 Pieces／Set | ||
Rotor type | Direct rotor | ||
Motor speed | 960r/min | ||
Motor power | 1.50 kW | ||
Motor start method | Direct start | ||
Main size | Tower diameter（F） | 1,830mm | |
Tower height（H） | 2,020mm | ||
In／out tube size（DN） | 80mm／80mm | ||
Overflow/drain pipe size （DN） | 25mm／25mm | ||
Automatic hydration size（DN） | 15mm | ||
Material | Motor | Hermetic waterproof type | |
Fan | A.B.S | ||
Shell | Glass steel F.R.P | High-quality | |
Basin | |||
Sprinkler system | P.V.C | ||
Film | P.V.C | Flame retardant | |
Float valve | A.B.S | ||
Inlet system | P.V.C |
