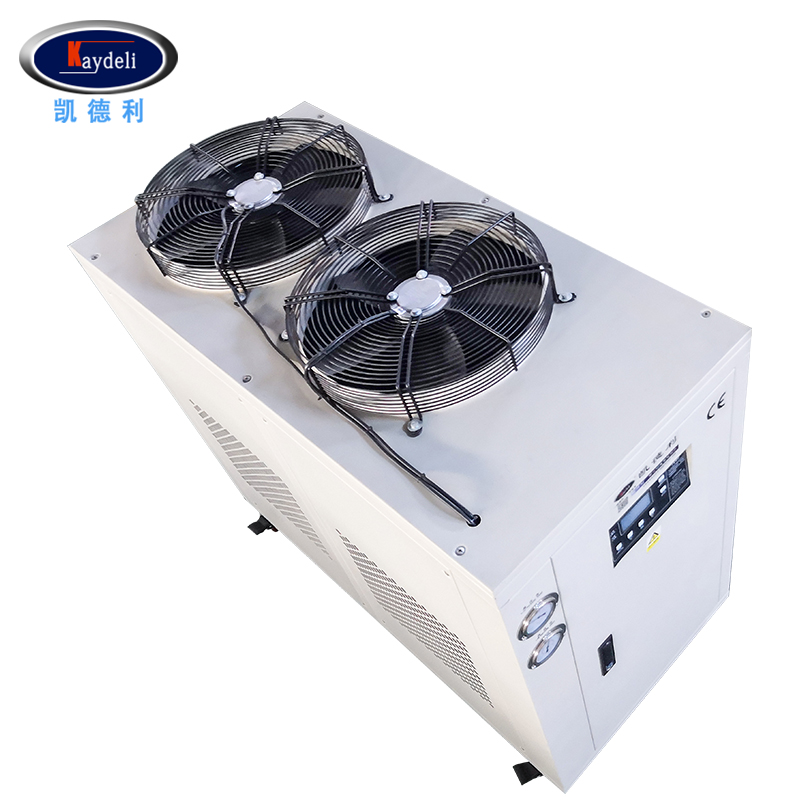

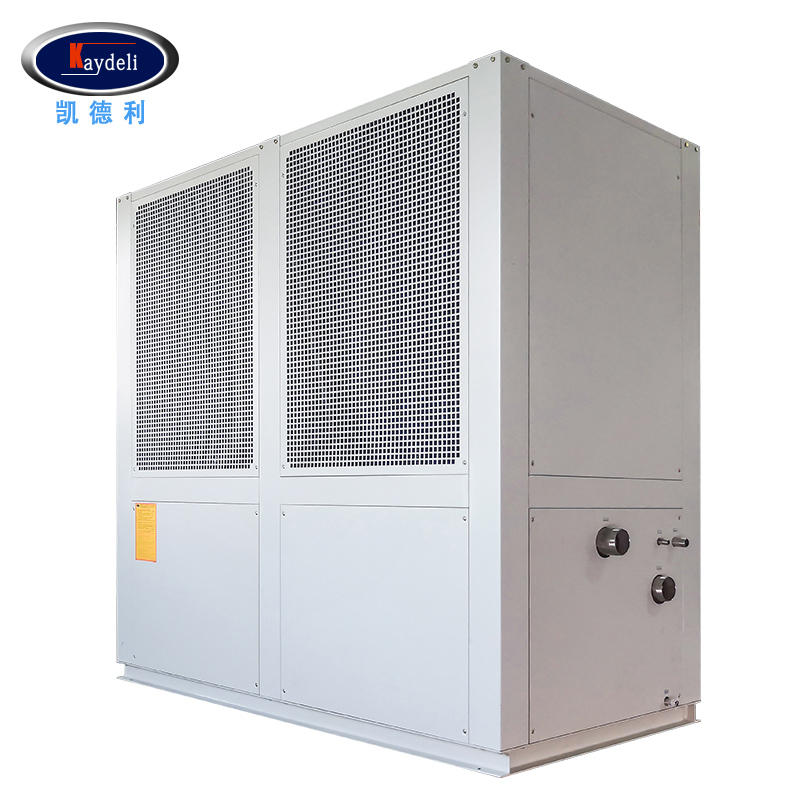

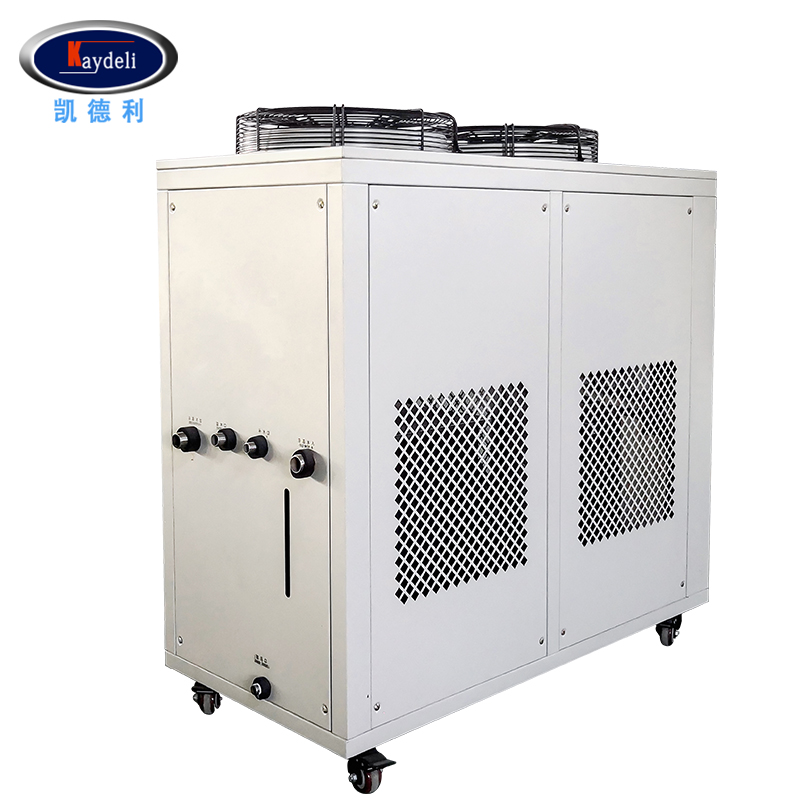

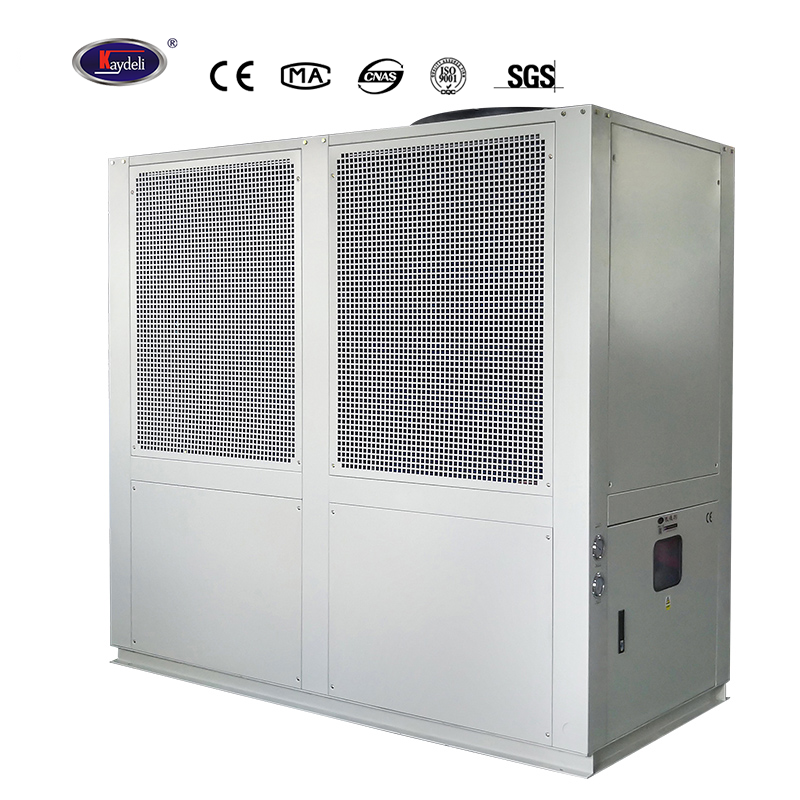

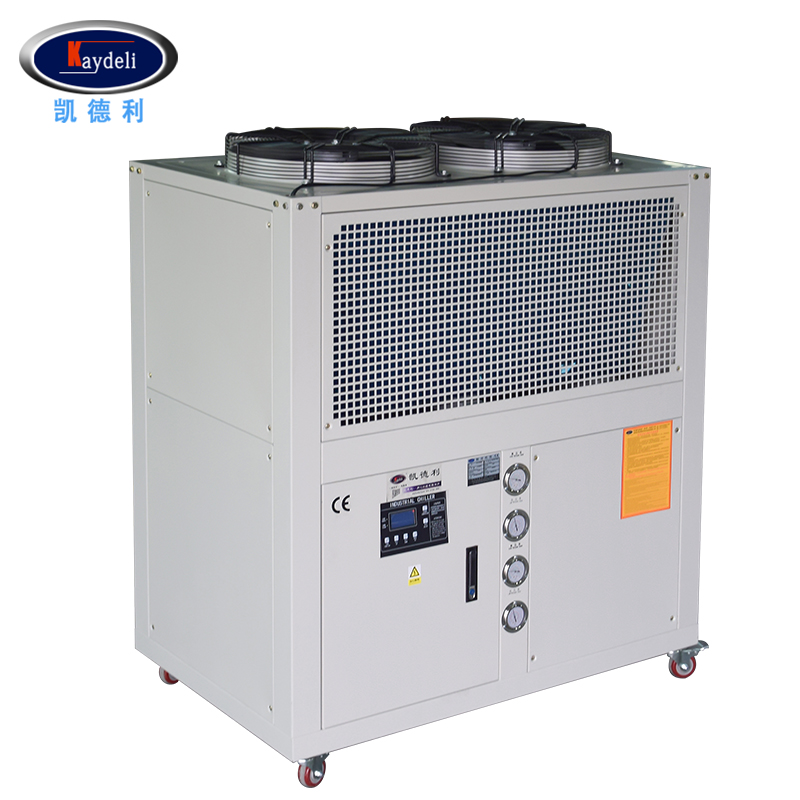

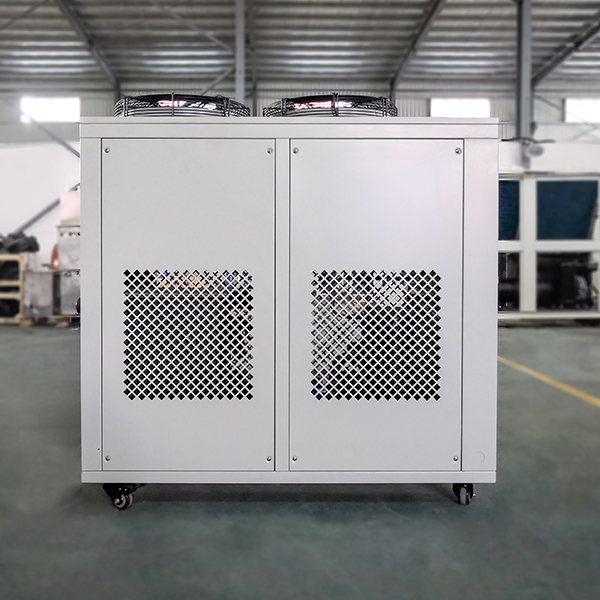

3hp to 24hp Oil Cold Chiller Machine in CNC Equipment 3hp to 24hp Oil Cold Chiller Machine in CNC Equipment

Oil chiller capacity 5KW to 62KW: Kaydeli Chiller having various oil chiller models with cooling capacity range from 5KW to 62KW Temperature control 7℃ to 45℃: Oil chiller designed by Kaydeli Chiller will keep the cooling oil at the temperature control range from 7℃ to 45℃ SS brazed plate type heat exchanger: All oil chiller units manufactured by Kaydeli Chiller having Stainless steel brazed plate type heat exchanger as the evaporator Cooling hydraulic and lubrication oil: Oil chillers from Kaydeli Chiller can be used for cooling both hydraulic oil and lubrication oil Micro-computer temperature controller: Each oil chiller manufactured by Kaydeli Chiller having smart Mirco-computer temperature controller For spindle and hydraulic oil cooling purpose: Oil chillers from Kaydeli Chiller are widely used for cooling spindle and hydraulic oil

Quantity:
Share this:
  • Product Description

Oil cold chiller machine sepecification:

ModelK0M-003K0M-006K0M-009K0M-012K0M-018K0M-024K0M-009HK0M-012HK0M-018HK0M-024H

Heat transfer medium

Oil

Temperature range

30~200

30~300

Heating capacity

KW

3

6

9

12

18

24

9

12

18

24

Power supply

Volt

3Phase-380V-50HZ

Pump

power

KW

0.37

0.37

0.75

1.5

1.5

2.2

1.5

1.5

2.2

3

Maximum flow

L/min

40

40

58

115

115

250

120

120

158

210

greatest pressure

kg/c㎡

2.7

2.7

3.7

4.6

4.6

2.7

2.3

2.3

2.6

2.7

cooling method

Indirect cooling

Piping diameter

External pipe diameter

Inch

3/8"

3/8"

3/8"

3/8"

1"

1"

1"

1"

1"

1"

Entrance and exit

Quantity

2×2

2×2

2×2

3×2

1×2

1×2

1×2

1×2

1×2

1×2

Cooling pipe   diameter

Inch

1/2"

1/2"

1/2"

1/2"

1/2"

1/2"

1/2"

1/2"

1/2"

1/2"

Mechanical   Dimensions

mm

650

650

650

680

750

750

1150

1150

1150

1150

300

300

300

350

400

400

500

500

500

500

550

550

580

600

6506501050

1050

1050

1050

Mechanical weight

kg

60

65

90

105

120

128

103

125

138

145

Note: Please pay attention to the requirements when   customizing. The above specifications are subject to change without notice.

Thermostat / mold temperature machine / water temperature machine / oil temperature machine features

  • computer touch control, easy to operate.

  • Japan imported micro-computer dual-group P.I.D temperature control table, touch-type internal storage, automatic calculation, saving more than 35%.

  • The safety protection and fault indication system is perfect.

  • imported advanced components, long service life.

  • the temperature rise and fall is fast, the temperature is accurate and stable.

  • unique power heating design, suitable for different temperature control places, energy saving effect is obvious.

  • The stainless steel is integrally formed, the tube is donated small, and the cooked is evenly distributed.

  • boot automatic exhaust function.

  • Mold return water temperature detection table

×
