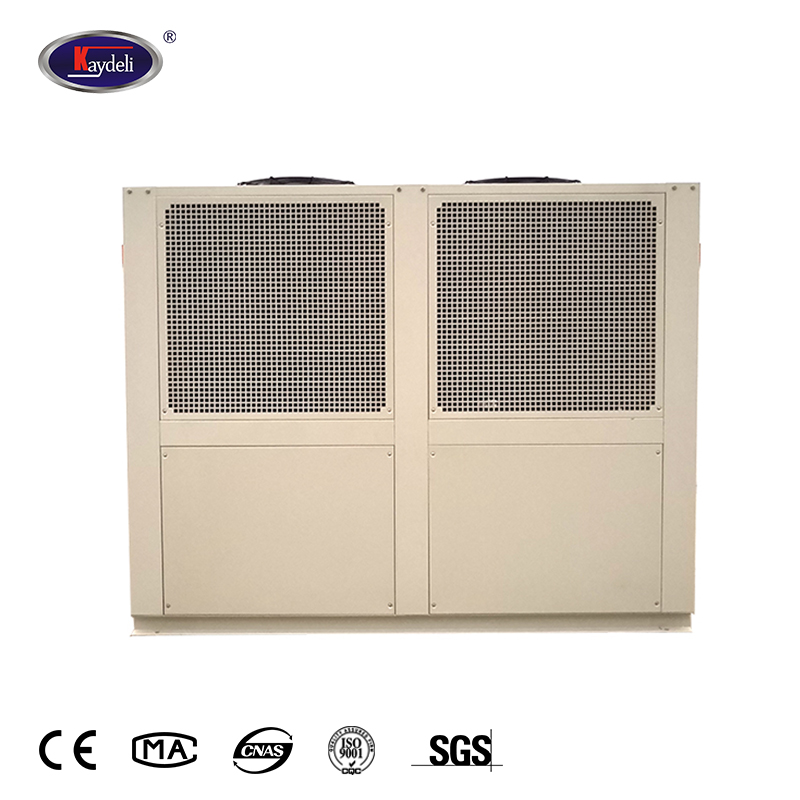

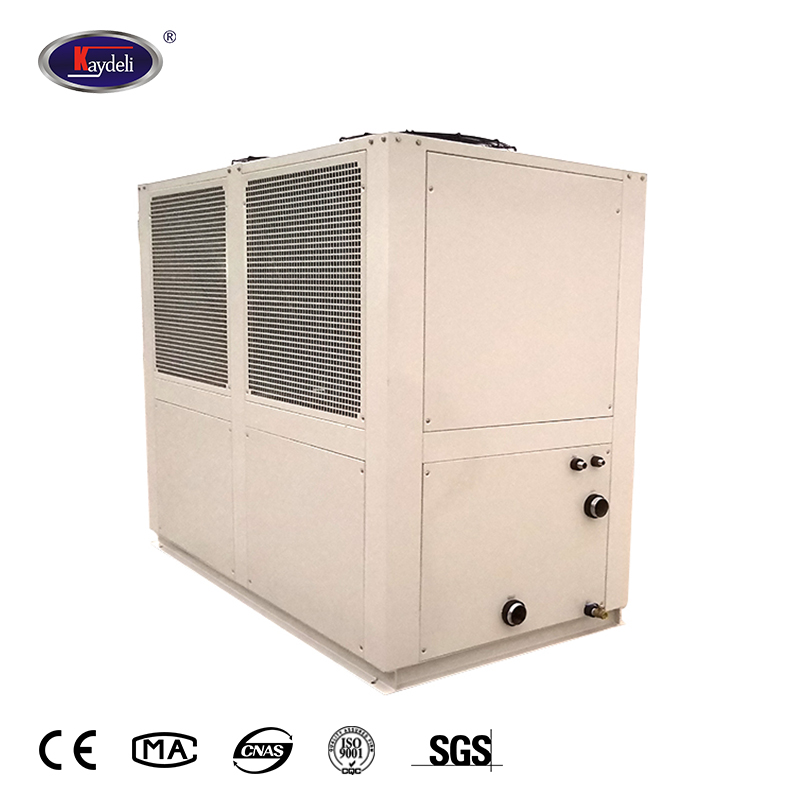

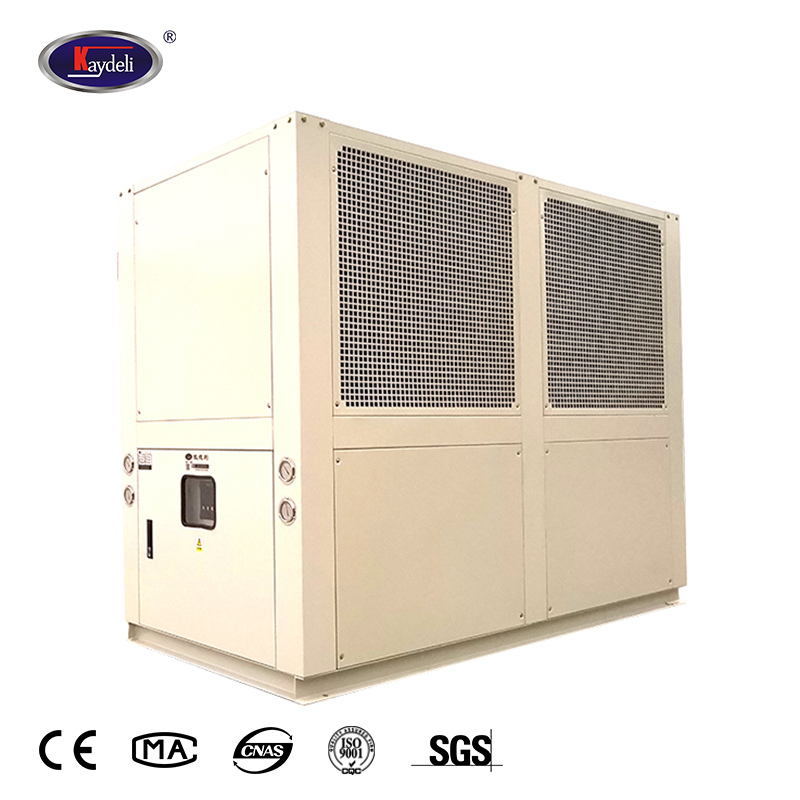

The Kaydeli 40-ton air-cooled low-temperature chiller is specially engineered to meet the stringent cooling requirements of the anodizing industry and also in hospitals, chemicals, and medicines refrigeration. Designed for continuous industrial operation, this chiller delivers precise temperature control, ensuring consistent quality and efficiency in your anodizing processes.
The Kaydeli 40-ton air-cooled low-temperature chiller combines advanced refrigeration technology with durable design to provide stable and precise cooling for anodizing tanks, chemical baths, and other industrial applications. Key features include:
High Cooling Capacity: 40 tons of refrigeration, suitable for medium to large anodizing lines.
Low-Temperature Performance: Capable of maintaining stable temperatures as low as [specify exact °C/°F if available], essential for quality anodized finishes.
Air-Cooled Condenser: Eliminates the need for water supply, simplifying installation and reducing operating costs.
Energy-Efficient Operation: Equipped with high-performance compressors and optimized heat exchange components for lower energy consumption.
Durable and Reliable: Industrial-grade components ensure long-lasting performance under continuous operation.
User-Friendly Control System: Intelligent temperature controller with easy-to-read display and precise adjustments.
Safety Protections: Includes overpressure, overload, and freeze protection systems to safeguard both the chiller and your production line.
KCL-020DA Industrial Air-cooled Low Temperature Chiller Parameter
Model | KCL-020DA | ||
cooling capacity | kW | 15.60 | |
kcal/h | 13416 | ||
Input power | kW | 19.63 | |
Power supply voltage | 3PH-380V-50HZ | ||
Compressor | Type | Fully enclosed scroll (Piston) | |
Start-up mode | Sequential start | ||
Power(kW) | 16.74 | ||
Refrigerant | Type | R404a | |
Control mode | Externally balanced thermal expansion valve | ||
Evaporator | Type | Shell &tube type | |
Chilled fluid flow | m³h | 6.73/8.07 | |
Pipe | B | PT2" | |
Condenser | Type | High efficient finned copper tube | |
Water pump | Power(kW) | 1.5 | |
Protective device | Compressor overheating, over current, high and low pressure, over temperature, flow switch, phase sequence,phase-missing, exhaust overheating,anti-freezing protection. | ||
Dimension | L | mm | 1900 |
W | mm | 990 | |
H | mm | 1660 | |
Weight | kg | 760 | |
Remarks:
1. Refrigeration capacity is based on: chilled water inlet and outlet temperature -5 ℃ /- 10 ℃, -20/-25℃
